KARA Cantilever Welding Machine

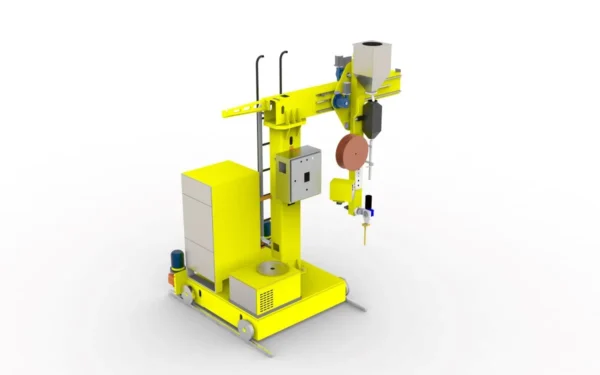

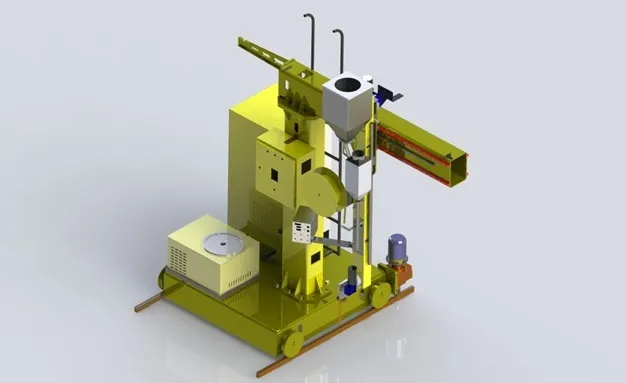

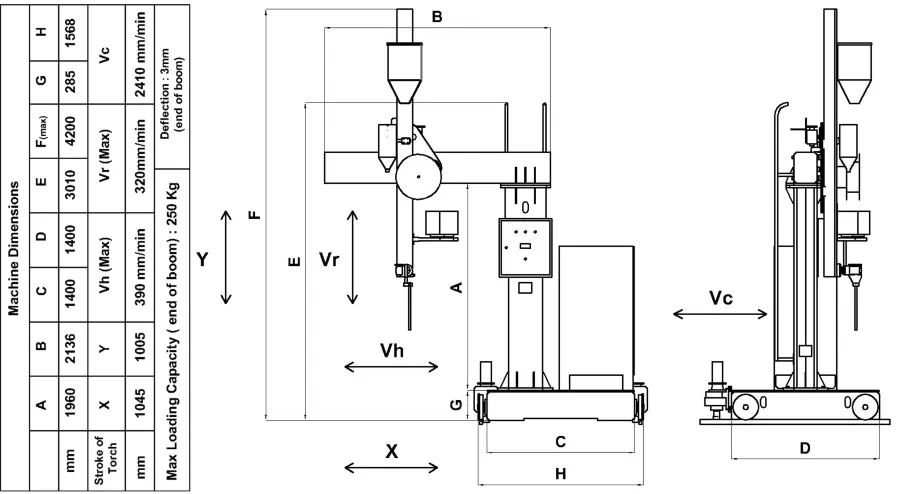

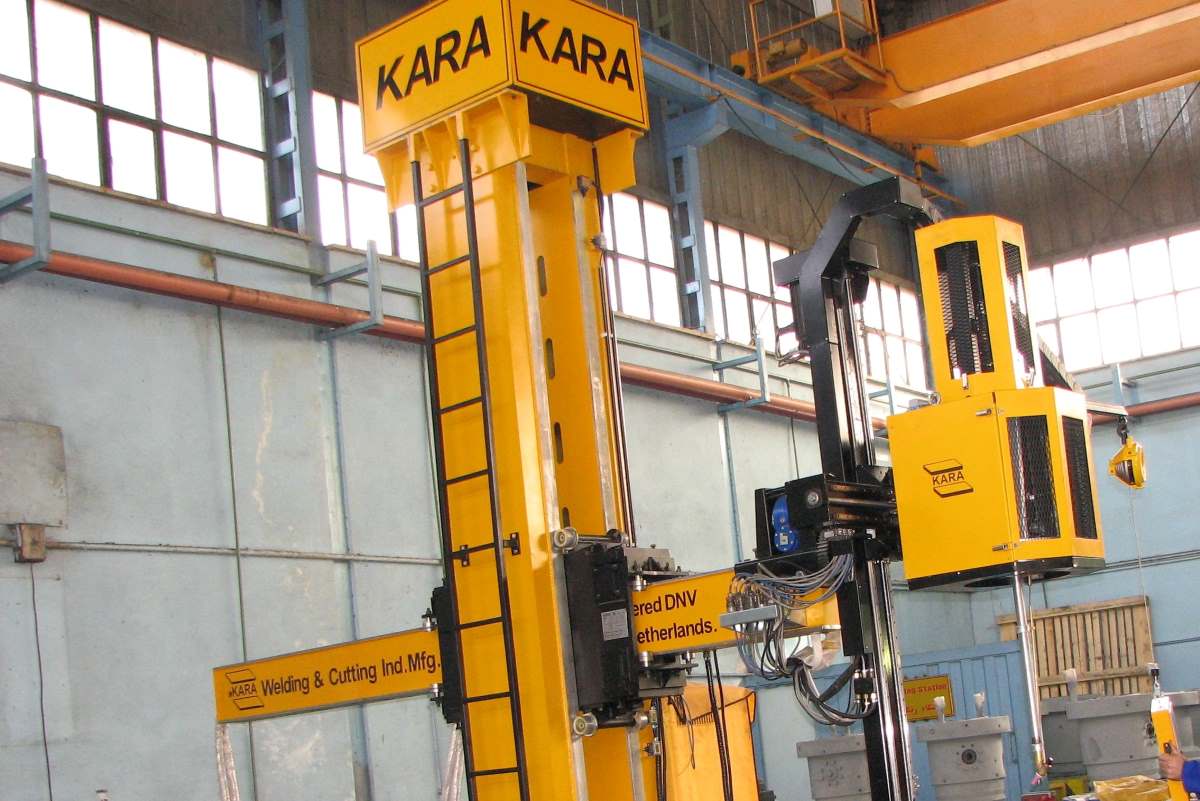

The machine consists of cart, column, boom, welding arm & tool carriage, mechanical welding torch tracing device, and electrical control system. The cart, column and boom are the framework of the machine.
groups of idler wheels on the tool carriage to closely attach with the guiding rails for upper & lower and left & right traveling.

KARA Cantilever Welding Machine

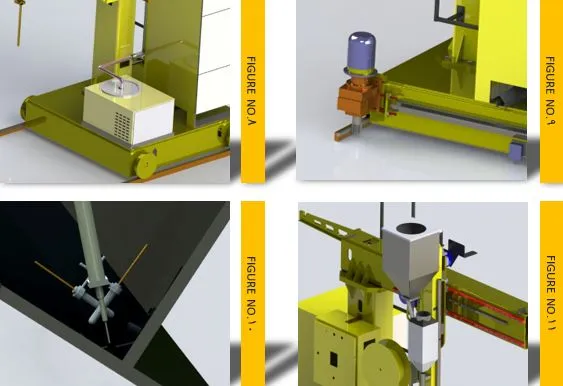

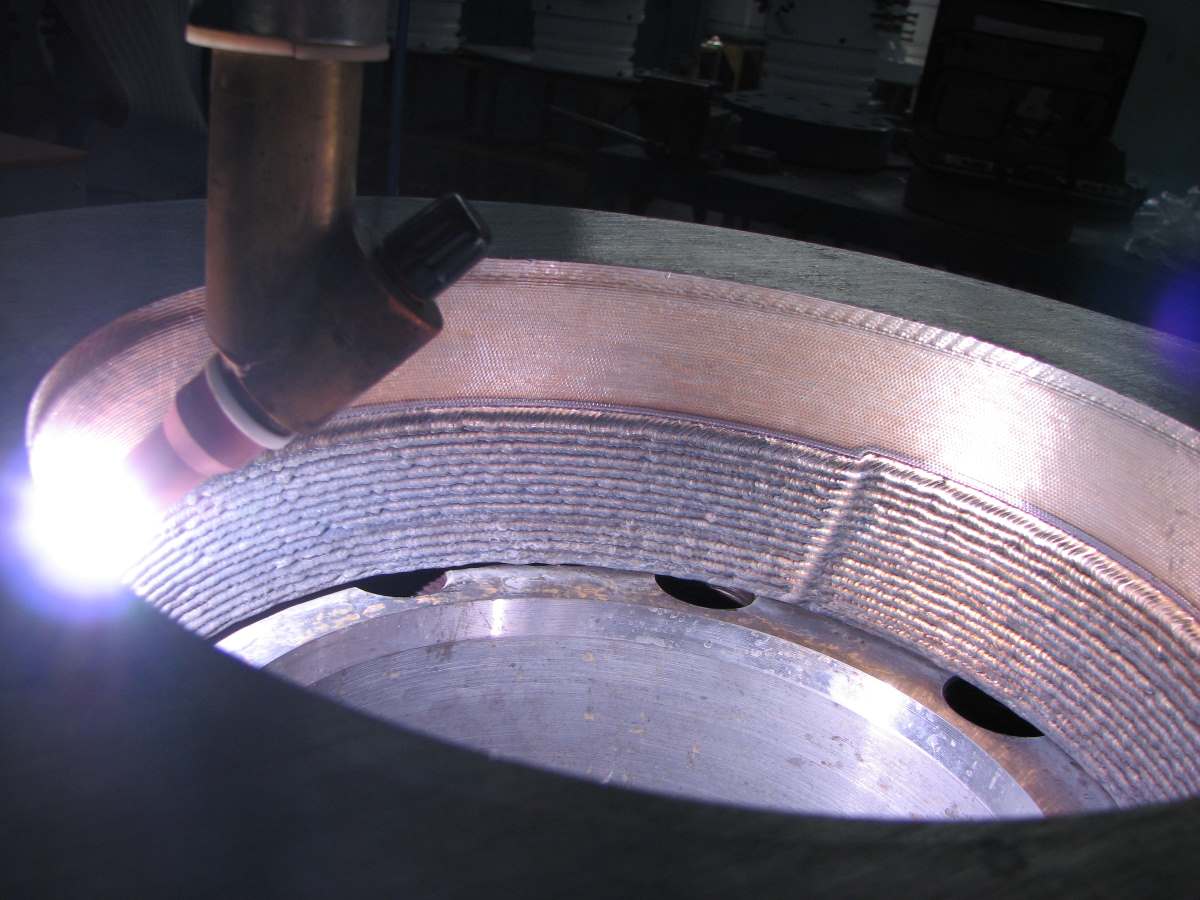

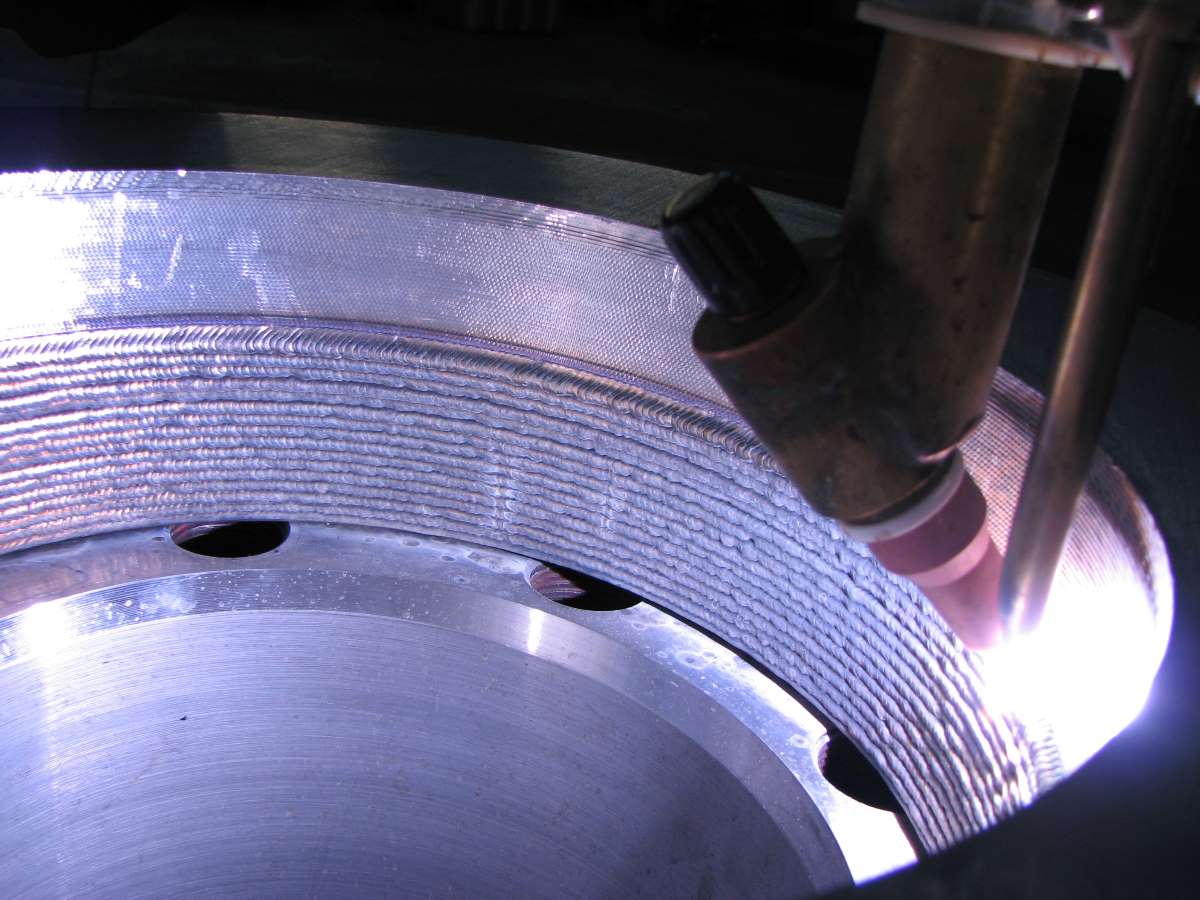

The machine consists of cart, column, boom, welding arm & tool carriage, mechanical welding torch tracing device, and electrical control system. The cart, column and boom are the framework of the machine. Welding arm and tool carriage are installed on boom, welding gun mechanical tracking device is used to support welding head and adjust the location of welding tip. There are several groups of idler wheels on the tool carriage to closely attach with the guiding rails for upper & lower and left & right traveling.Two groups of driving devices will be used to drive the traveling of welding arms in upper, lower, left and right direction.The mechanical welding torch tracing device is installed at the lower part of welding arm and the wire feeding device of welding head is installed at the upper part, which can assure the welding tip be aimed at the welding seam, but kept with certain clearance. Additionally, the manual left-right adjusting device for welding torch is equipped. Cantilever Welding Machine، The electrical control system consists of electrical control box and operation panel. Through this system, all operations of machine, adjustment of welding parameters of welding machine and switches of flux recovery machine will be controlled and executed.
