KARA CNC Plate & Tube Cutting Machine

Features:

  • Having a robust and durable machining structure.
  • Having a precise and high-speed linear motion using Servo Motor and planetary gearbox with a very low backlash.
  • Equipped with two Servo Motors and planetary gearboxes at the two sides of machine for a constant and vibration less motion. (Gantry configuration)
  • Possibility of transferring longitudinal motion force of cutting gate using a diagonal bevel rack & pinion for a fast and precise travel speed (Linear guide). Possibility of linear movement of cutting nozzle on the linear ball bearings using a diagonal bevel rack &

KARA CNC Plate & Tube Cutting Machine

  1. Suitable for making exact cuttings in various shapes and sizes using Oxy-Fuel and Plasma cutting techniques.
  2. Possibility of Oxy-Fuel and Plasma nozzles installation on the main head and attaching an extra Oxy-Fuel nozzle (Master & Slave)

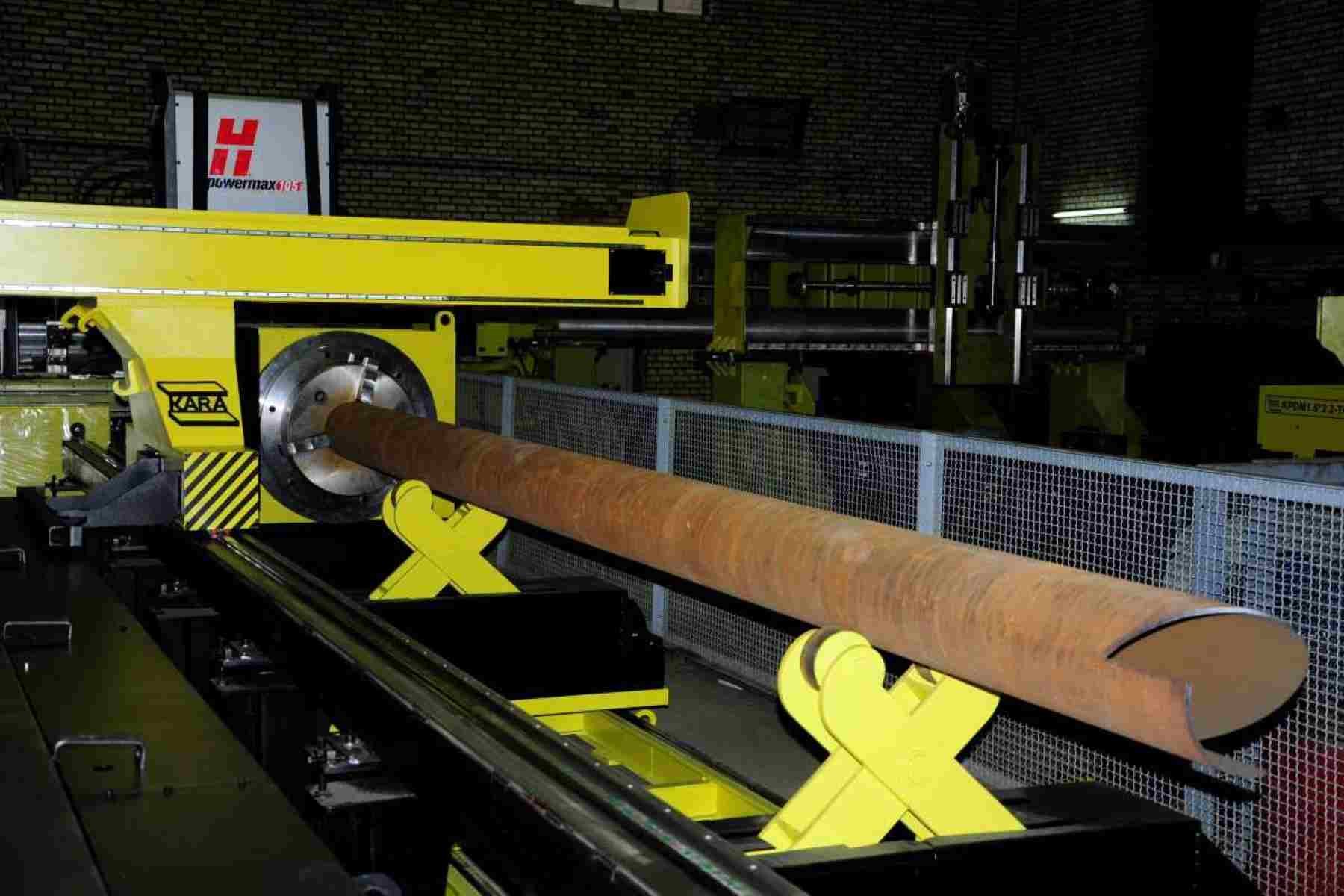

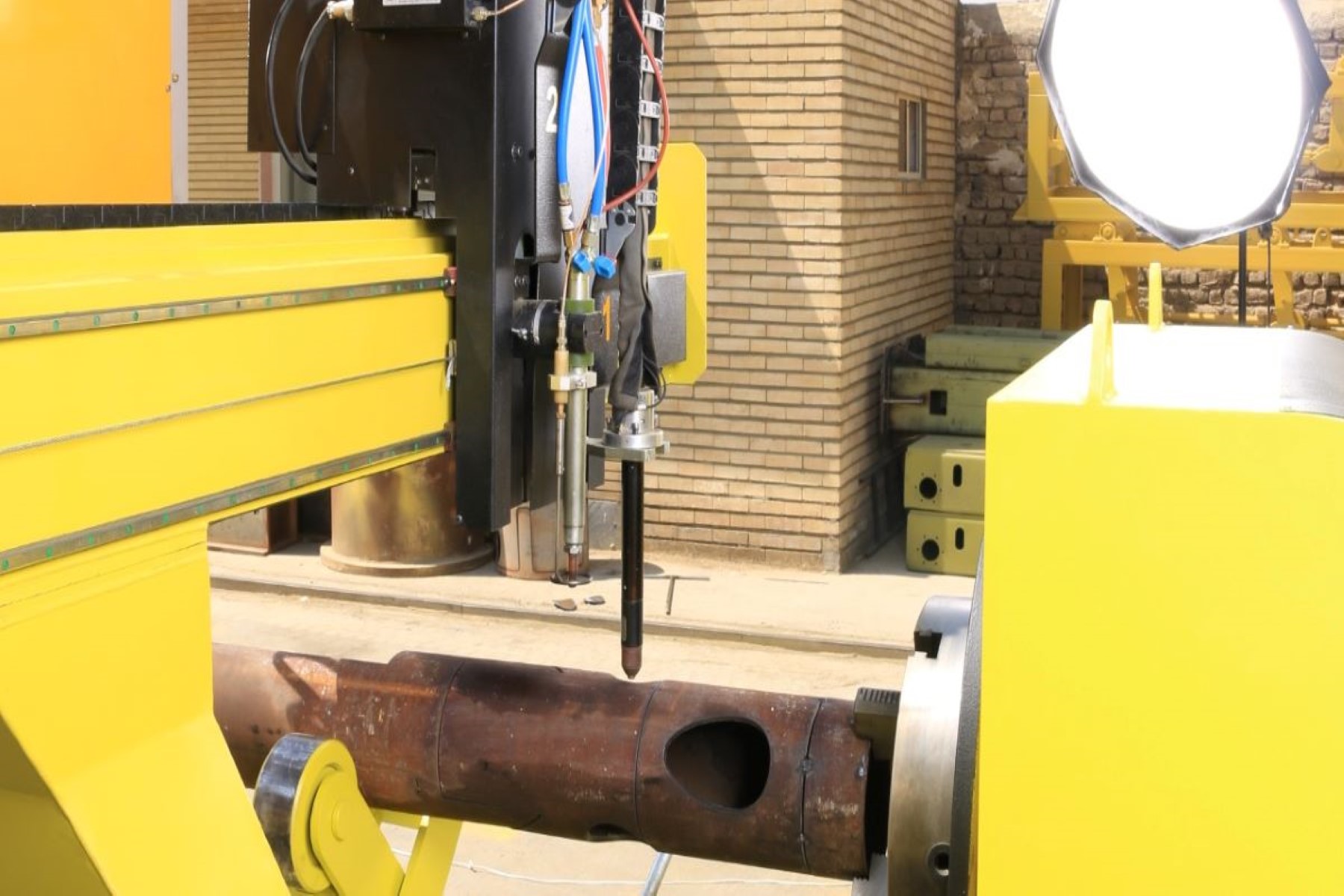

  3. Possibility of cutting various geometric shapes on the tube
  4. Having a robust and durable machining structure.
  5. Having a precise and high-speed linear motion using Servo Motor and planetary gearbox with a very low backlash.
  6. Equipped with two Servo Motors and planetary gearboxes at the two sides of machine for a constant and vibration less motion. (Gantry configuration)
  7. Possibility of transferring longitudinal motion force of cutting gate using a diagonal bevel rack & pinion for a fast and precise travel speed (Linear guide). Possibility of linear movement of cutting nozzle on the linear ball bearings using a diagonal bevel rack &
  8. pinion for fast and precise movements (Rack &Pinion and Linear Guide).
  9. Using the TEX Computer CNC Control System made in Italy with a performance version 2016.
  10. Equipped with an automatic height control system for nozzles to prevent crashing of nozzle with H-beam.
  11. Equipped with automatic solenoid valves for each nozzle to avoid Oxygen and Gas waste, to adjust cutting flame and easy operation.
  12. Equipped with a flame or flashback arrestor.
  13. Having a dust remover for slide rails.
  14. Equipped with a spring-applied control system for gearbox to protect damages resulting from operator fault while working.
  15. Equipped with robust, integrated and adjustable slide rails for unsmooth workshop surfaces.
  16. Having a set of robust steel belt tables which can be replaced easily.
  17. Equipped with a fume suction table.
  18. Equipped with an operator seat.


Machine Control System , Option #1

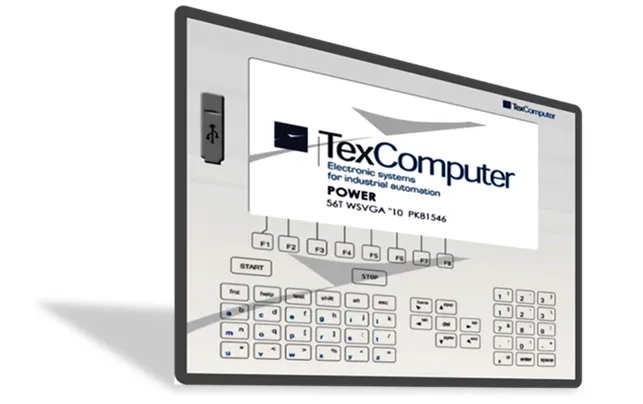

TexComputer (Italy)

  1. Equipped with 6 axillary machine zero points for placing workspace at 6 various locations of machine
  2. Transferring Files method: WIFI, Ethernet PORT, USB memory.
  3. 10-Inch-wide touch screen color monitor. (65000 colors, 1024x768 pixel)
  4. Controlling of Oxy-Fuel or plasma torch at various modes.
  5. Adjustable cutting torch Kerf.
  6. Predefined figure library.
  7. Touch screen and graphic monitor (Persian and English)
  8. Backward cutting facility.
  9. Connectable mouse and keyboard (for editing codes).
  10. A Laser Pointer for Determination of Zero point. (optional)
  11. Adjusting plate angle by software.
  12. Possibility of Attaching Axis Beveling (optional).
  13. G-Code Generator: Pro Nest Software Program (in office).
  14. CNC Automatic Torch Height Controller (for plasma torch).
  15. Fully-Closed-Loop Servomotor Control System.
  16. Cutting Type Software Selection (Oxy-Fuel/Plasma).
  17. Controller Technology (ITALY, 2016).


KARA Plasma Cutting Machine



Application

Suitable for cutting in all metal industries with easy operation, high velocity and quality Capability of cutting carbon steel with a 0.5mm-25mm thickness as well as stainless steel with a 0.5mm-20mm thickness and aluminum 0.5mm-15mm.

Process Description

KARA Plasma Cutting uses a concentrated electrical arc which melts the material through a high temperature plasma beam. All the conductive metals such as carbon steel, alloy steel, aluminum, copper, etc. can be cut. In this process, the work-pieces can be cut by using ionization of gas and jet ions which are expanded with a high velocity from a very narrow orifice. The contact of these ions with work-piece produces a high amount of heat causing the area to be melted. The plasma gases can be compressed air, Nitrogen, Oxygen or a mixture of Argon/Hydrogen. Since there is 5-7 times increase in cutting speed compared to Oxy-Fuel cutting, there will be fewer dead times (without pre-heating). Indeed, the high speed and no need to Oxy-Fuel, there a considerable reduction in the plasma cutting price compared to Oxy-Acetylene welding.

Features

  • Continuous current Control from 20 A to max (thyristor control).
  • Tough work shifts for a long time cutting.
  • Thermostat for protection against overload & overcurrent.
  • Twin filter drier.
  • Output current display.
  • Air pressure gauge.
  • Maximum Current limiter.
  • Tow eyelet for easy transportation.

AccessoriesWater

Water cooler unit for plasma cutting torch cooling.
Plasma cutting torch (air/water Cooled).
Longitudinal cutting carriage with capability of straight torch installation (optional).


Main Technical Specifications

Tube Cutting Specification

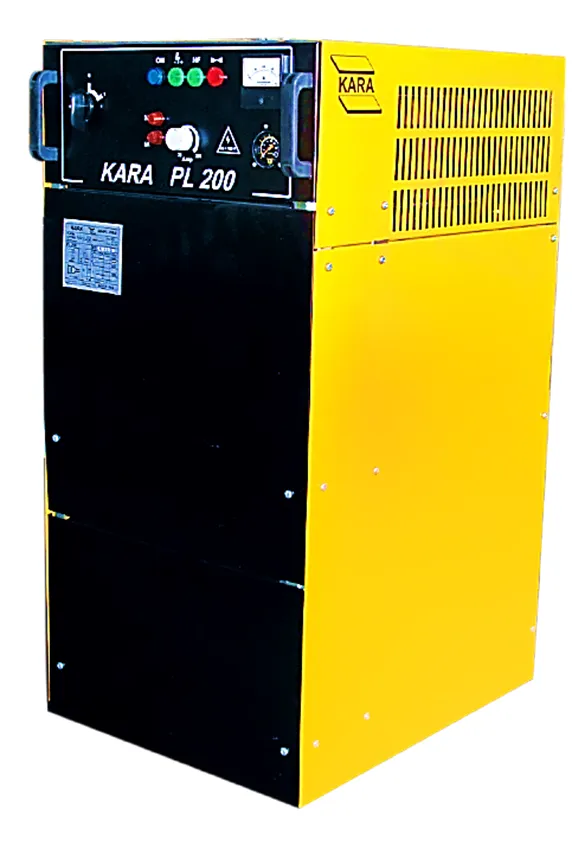

KARA PLASMA 200A Technical Specification

















Welding & Cutting Ind. Mfg. Co
