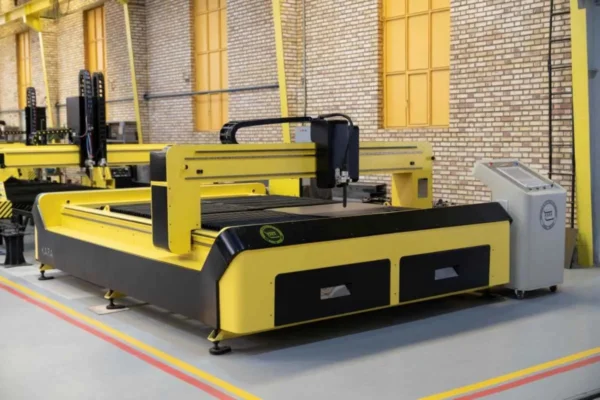

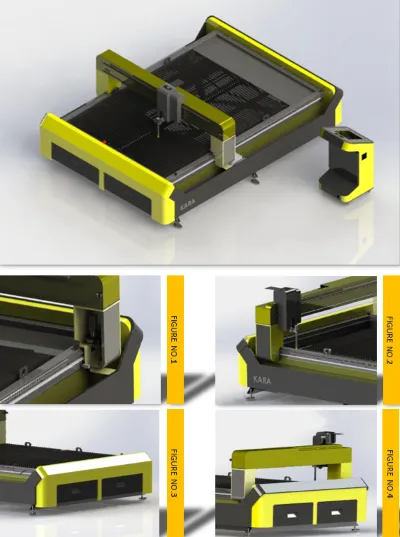

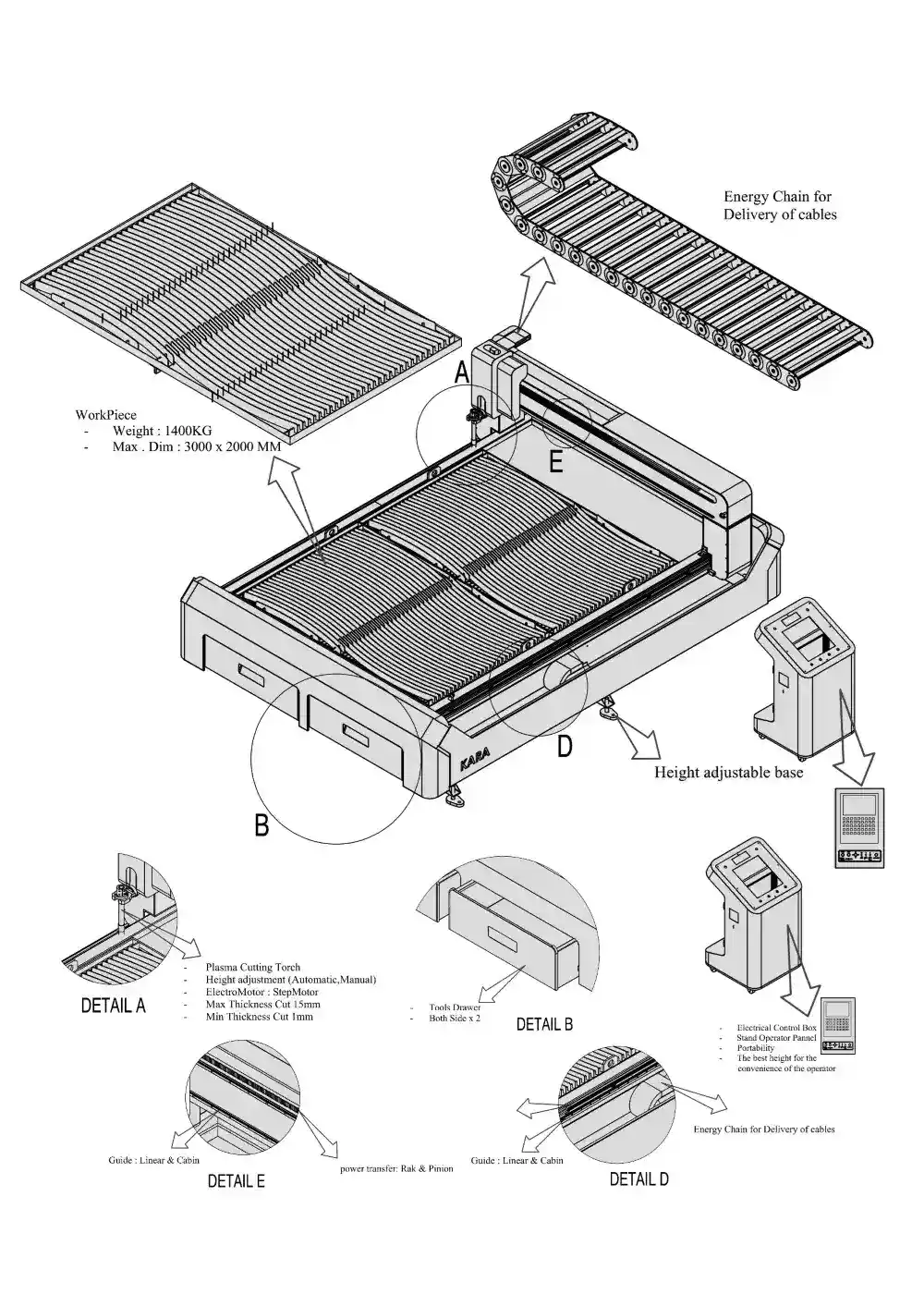

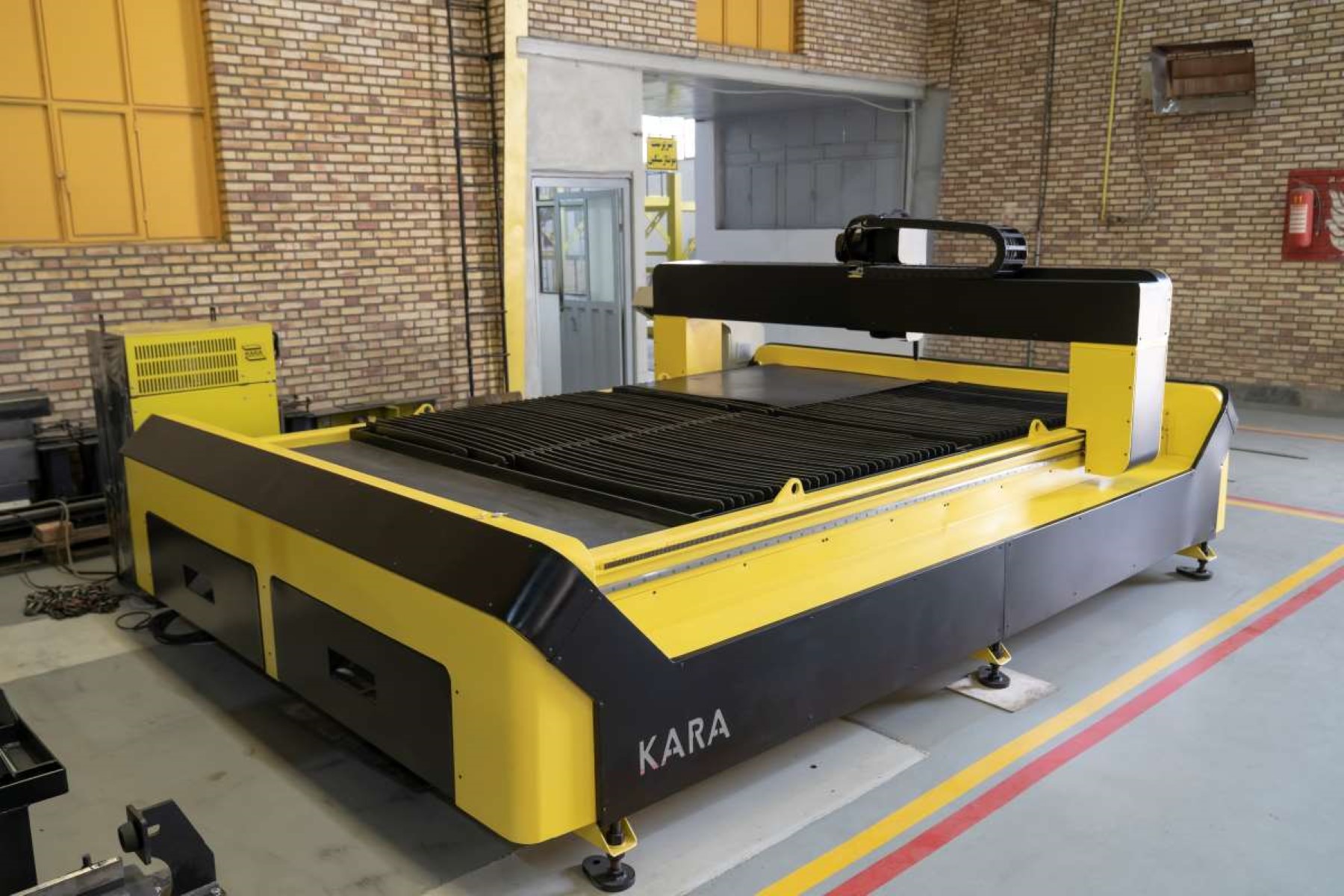

KARA Compact CNC Cutting Machine

Features:

  • Having an accurate and high-speed linear motion using servo motor and precision gearbox with a Very Low Backlash.
  • Equipped with two servo motors and low backlash gearboxes at the two sides of machine for a constant and vibration less motion. (Gantry bridge)
  • possibility of transferring longitudinal motion force of cutting gate using a helical bevel gear for a fast and precise travel speed (Rack Pinion).

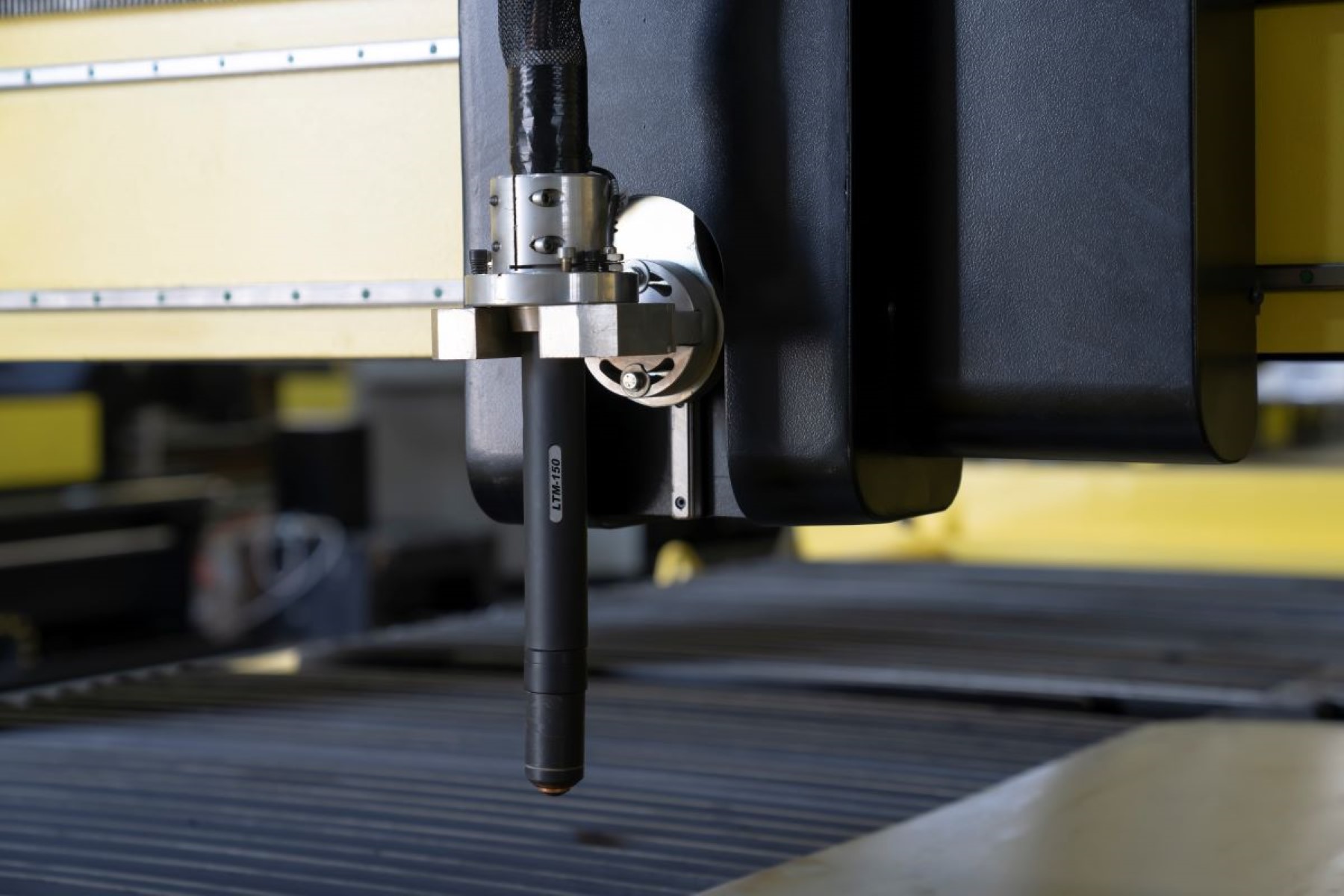

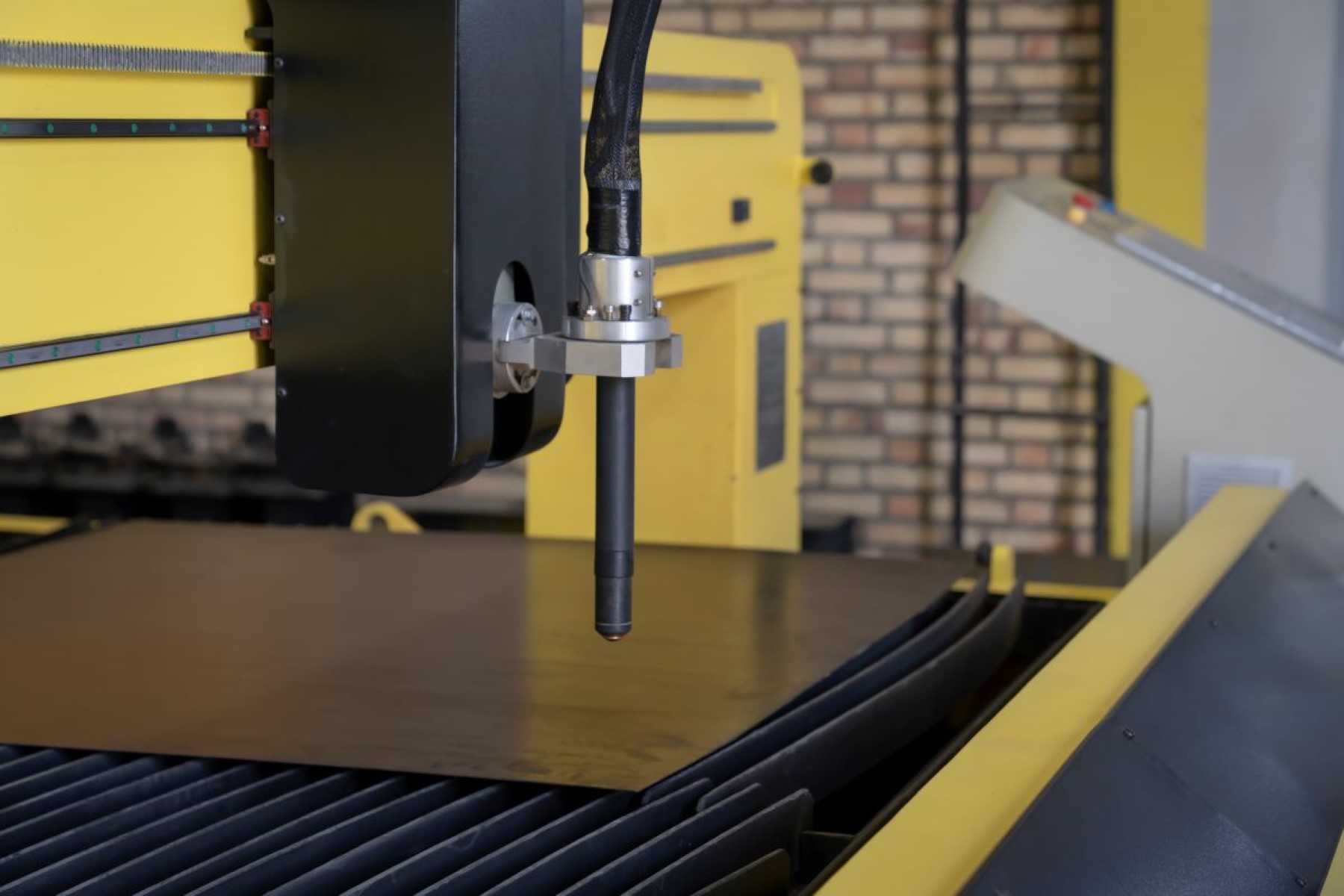

  • Possibility of linear movement of cutting torch on the linear ball bearings using a bevel gear for fast and precise movements (Rack pinion and linear guide).

KARA Compact CNC Cutting Machine


  1. Suitable for making exact cuttings in various shapes and sizes using plasma cutting techniques.
  2. Possibility of plasma torch Installation on the leading head attach. (Master - Slave)
  3. Having a robust and durable machining structure.
  4. Having an accurate and high-speed linear motion using servo motor and precision gearbox with a Very Low Backlash.
  5. Equipped with two servo motors and low backlash gearboxes at the two sides of machine for a constant and vibration less motion. (Gantry bridge)
  6. possibility of transferring longitudinal motion force of cutting gate using a helical bevel gear for a fast and precise travel speed (Rack Pinion).
  7. Possibility of linear movement of cutting torch on the linear ball bearings using a bevel gear for fast and precise movements (Rack pinion and linear guide).
  8. Using the MicroStep torch control system.
  9. Equipped with an automatic height control system for torches to prevent crashing of torch with Plate.
  10. Equipped with solenoid valves for each torch to avoid oxygen and gas waste, to adjust cutting flame and easy operation.
  11. Equipped with flashback arrestor for flame safety.
  12. Equipped with a spring push anti backlash rack & pinion system to protect damages resulting from operator fault while working.
  13. Equipped with robust, integrated and adjustable slide rails for weak inclined workshop bed.
  14. Having a set of robust steel and tables and steel band stand which can be replaced bend easily.

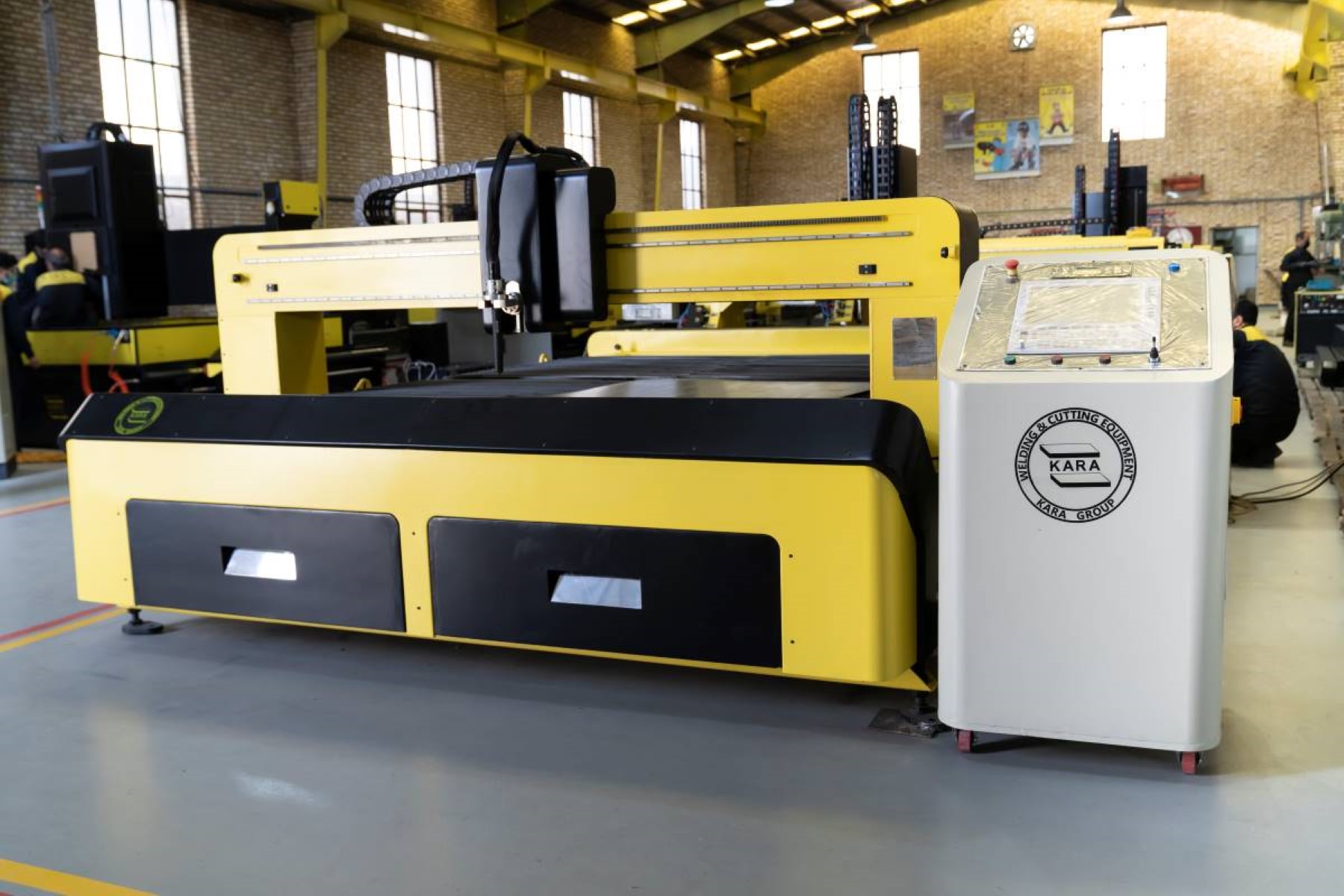

Machine Control System


MicroStep (China)

Technical Specifications:
  1. Large LCD: 15” CC-Z4 Cutting Numerical Controller Four Torches separately control. It has many cutting types and it works well in worse environment.
  2. Stronger Industrial Embedded Core.
  3. Support various compound cutting, plasma, flame, laser, line-draw, drill, can steady work in the electromagnetism environment.
  4. Support different cutting, such as cutting, such and so on. It can stably work under complicated electromagnetic environment.
  5. Transferring file method: USB
  6. Adjustable cutting torch: Kerf.
  7. Predefined figure library.
  8. Backward cutting facility.
  9. G-code Generator: pronest software programs (in office).
  10. Open loop servo control.
  11. Oxy- fuel & plasma height control: External
  12.  User friendly.
  13. Simple operator training
  Accessories products: Remote Control: RFM1 RFS1 Arc voltage torch height controller: AHG-1 AHa-L1 Torch lifting device: AHb-M2 AHb-L2
KARA PLASMA 200A


Main Technical Specifications

KARA PLASMA 200A Technical Specification
