KARA H-Straightening Machine Type (A)

Features:

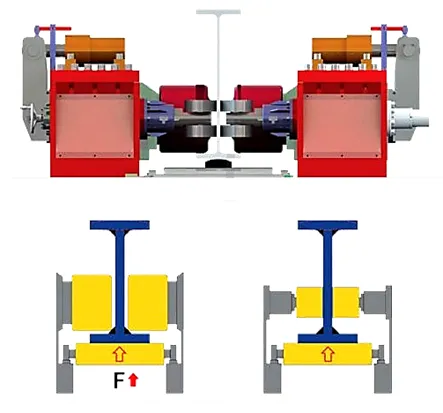

This machine is two correction wheels on the top straighten the flange downward. The difference is, the power of correction wheel is from hydraulic cylinder instead of gear reducer. The characteristic of using top correction wheel is:

  1. both sides of flange can be corrected separately and can control the effect of straightening so that to make the web vertical after straightening.
  2. The roller conveyor no need elevating which can save cost and easy for operation.

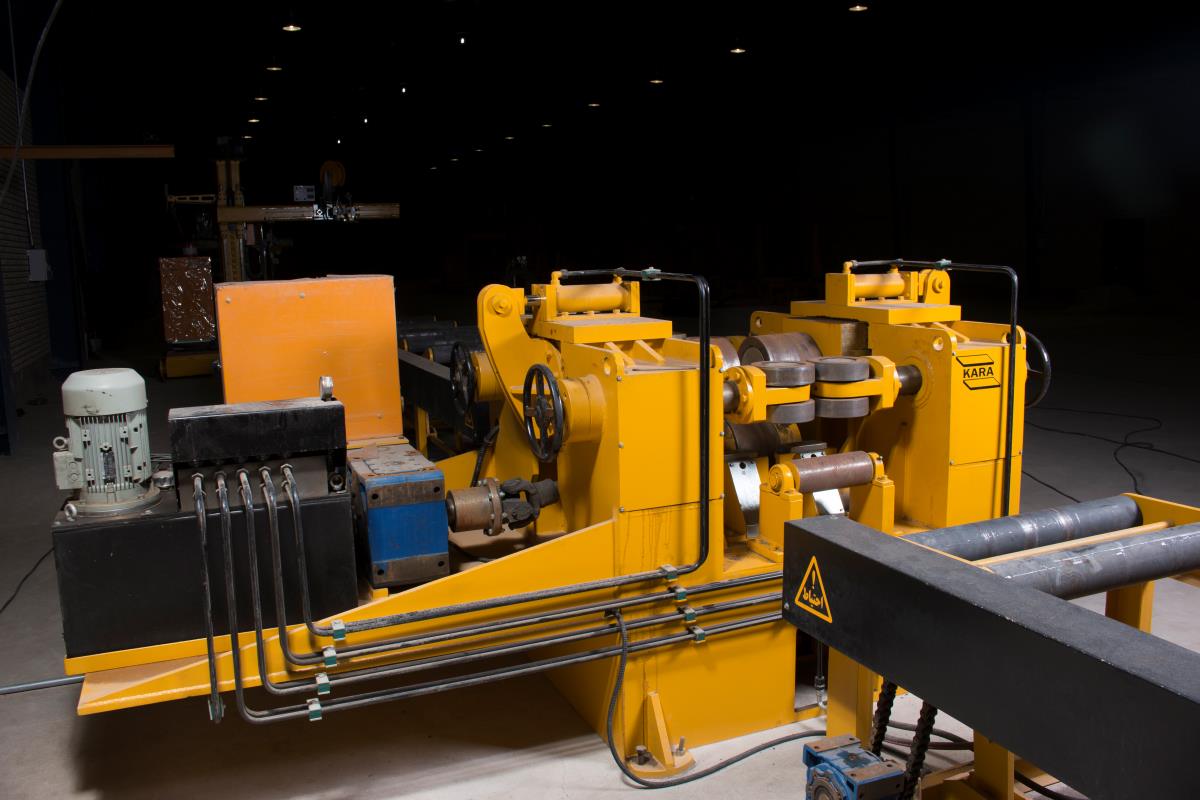

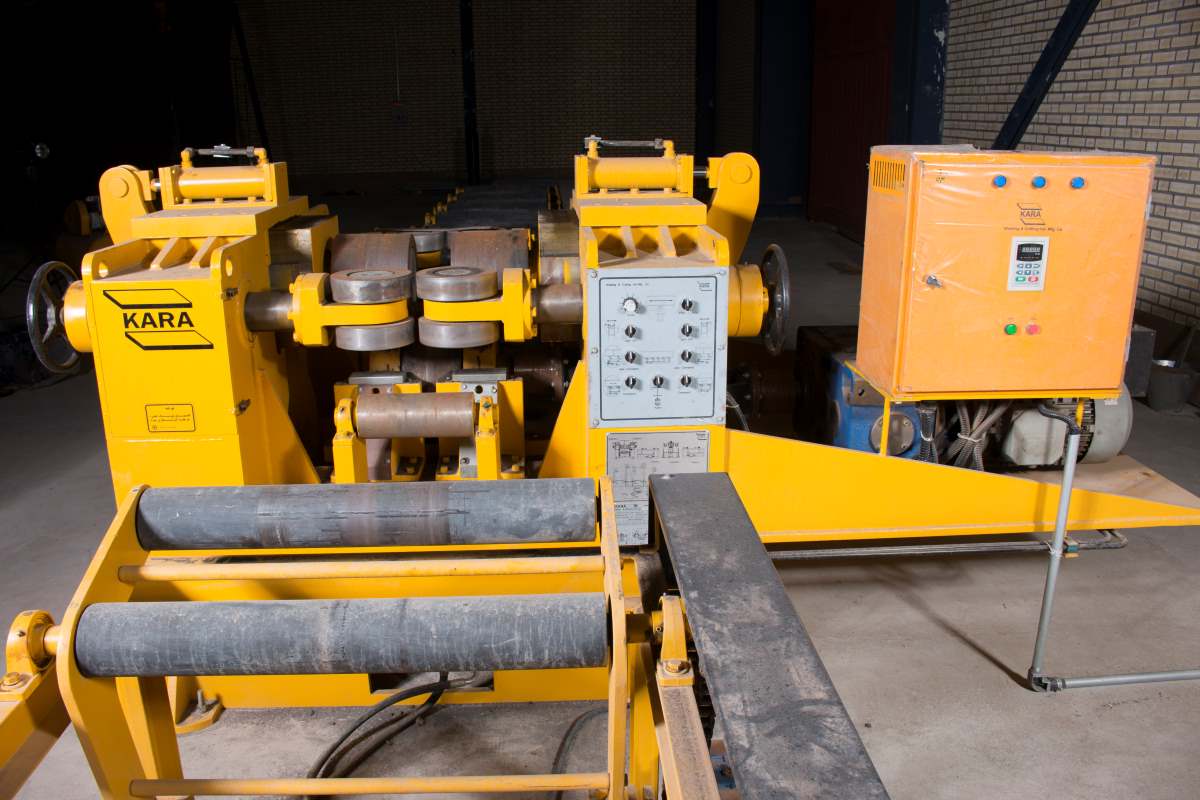

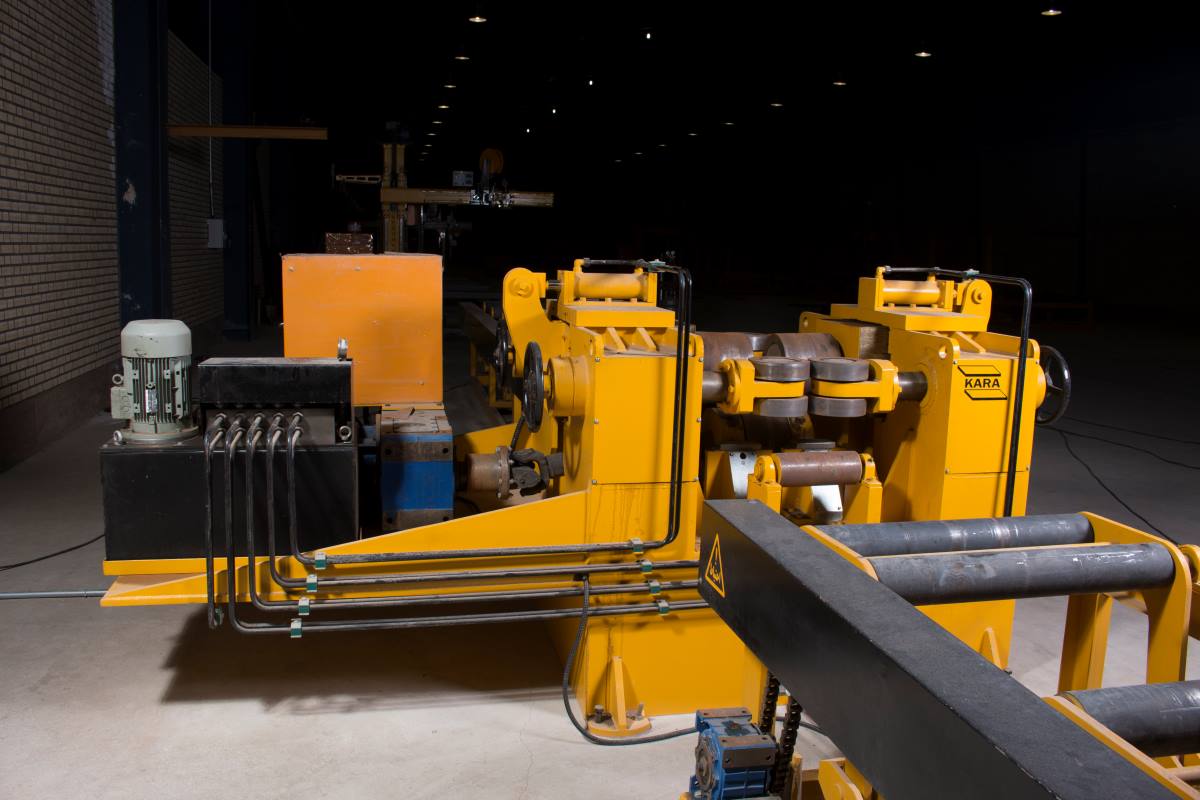

KARA H Straightening Machine (A)

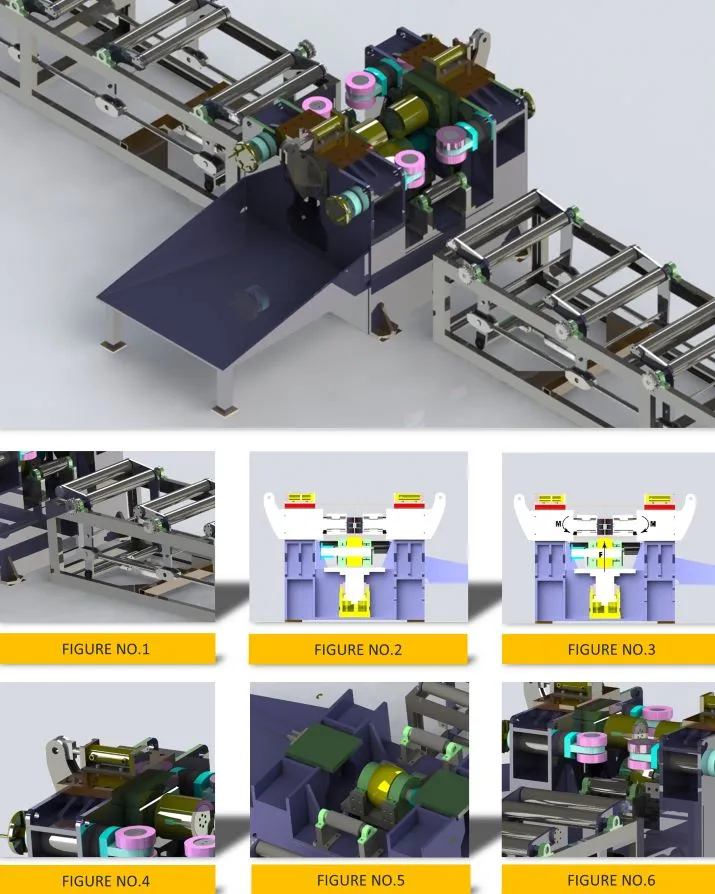

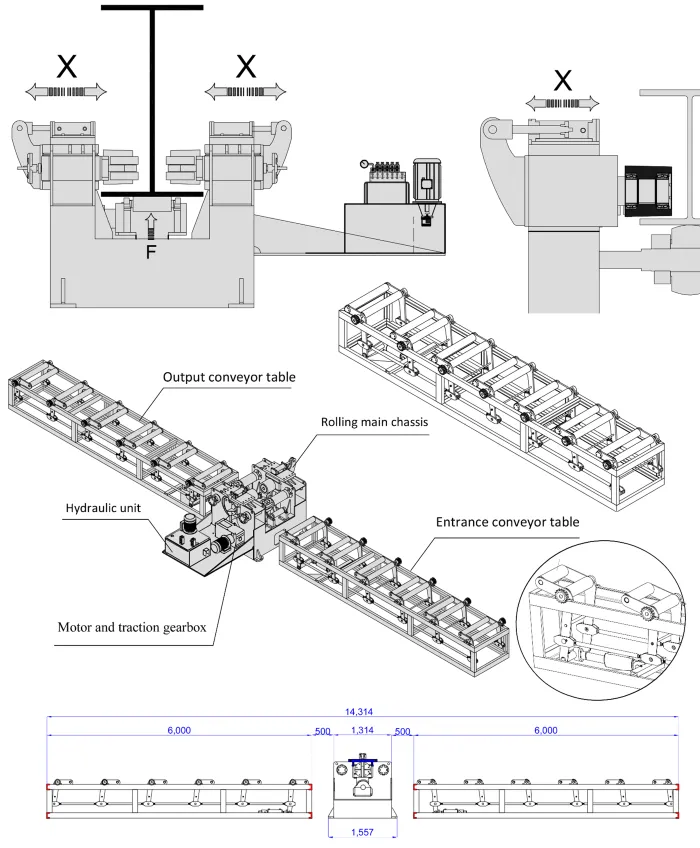

H Beam Hydraulic Straightening Machine is composed of main motor, reducer, active roller, correcting roller device, active roller lifting cylinder, web, wing clamping device, main frame, machine base, front and rear conveying rollers, hydraulic system, electrical system, etc. The equipment has compact structure, high strength and sufficient rigidity. This machine is two correction wheels on the top straighten the flange downward. The difference is, the power of correction wheel is from hydraulic cylinder instead of gear reducer. The characteristic of using top correction wheel is: 1. both sides of flange can be corrected separately and can control the effect of straightening so that to make the web vertical after straightening. 2. The roller conveyor no need elevating which can save cost and easy for operation. The features of straightening equipment: - Rolling main chassis (Rolling roller ( - Entrance conveyor table - Output conveyor table - Hydraulic jacks - Hydraulic unit (Hydraulic pump station ( - Motor and traction gearbox - Electric control system

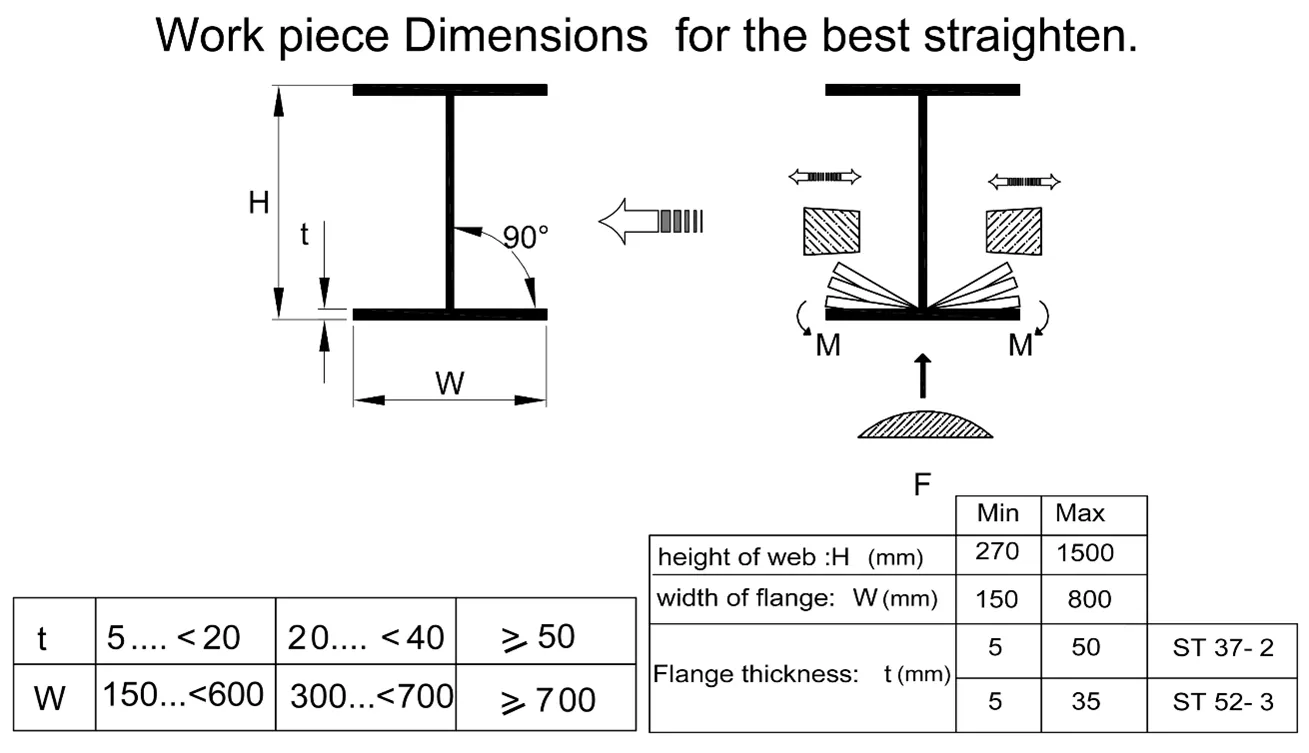

Main Technical Specifications
