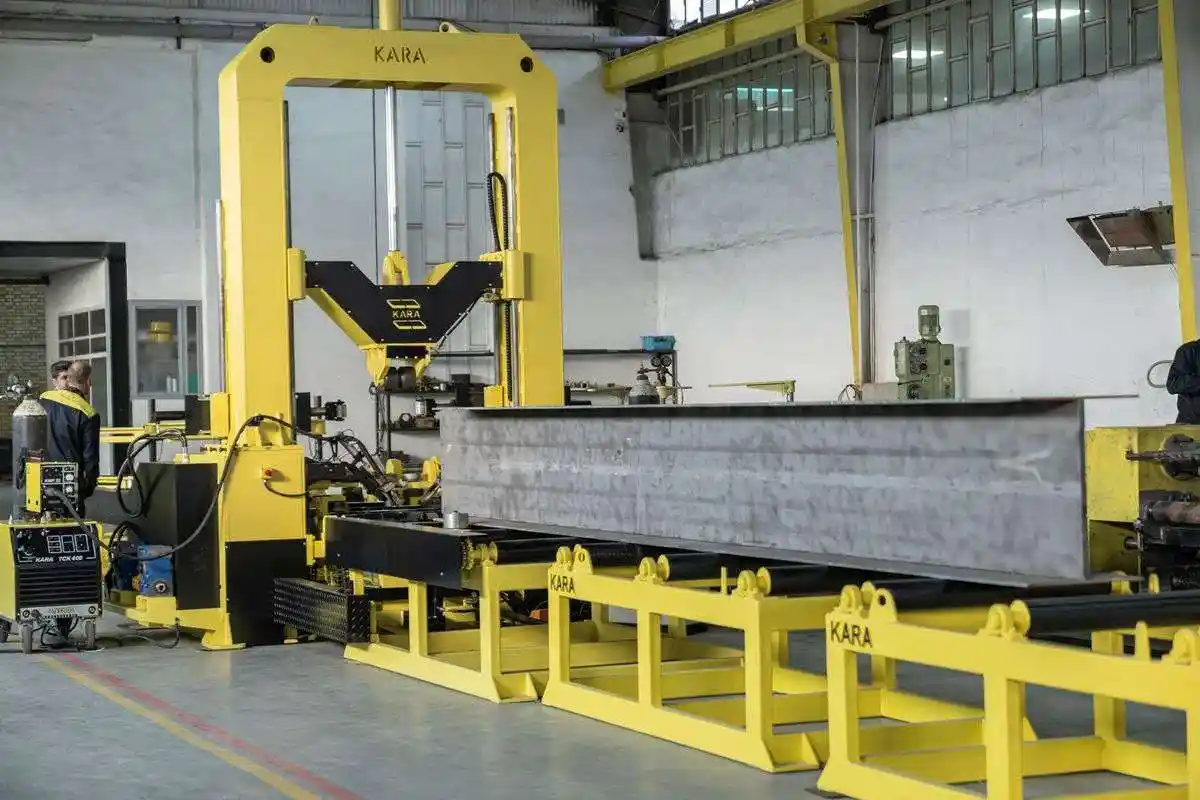

KARA H–Beam Assembly Machine

KARA H–Beam Assembly Machine

---

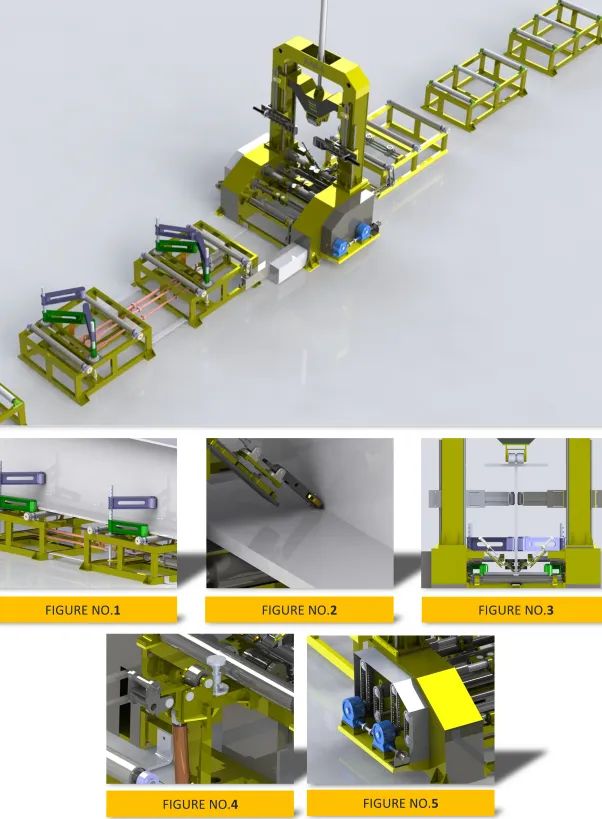

1. KARA H beam assembly machine (A) can be used for manufacturing various T & H shapes steel structures in different industries.
2. Involving 7 Chassis parts including 1 main Chassis set, 3 movable table sets equipped with 4 web and flange plate and 3 swivel table.
3.  Having 2 weld and forward velocity simultaneously with Possibility of changing Programmer Logic Controller (PLC)
4. Having travel Parameters in accordance with each project working thickness
5. Equipped with 8 web rollers on the main chassis.
6. Equipped with 8 flange rollers on the main chassis.

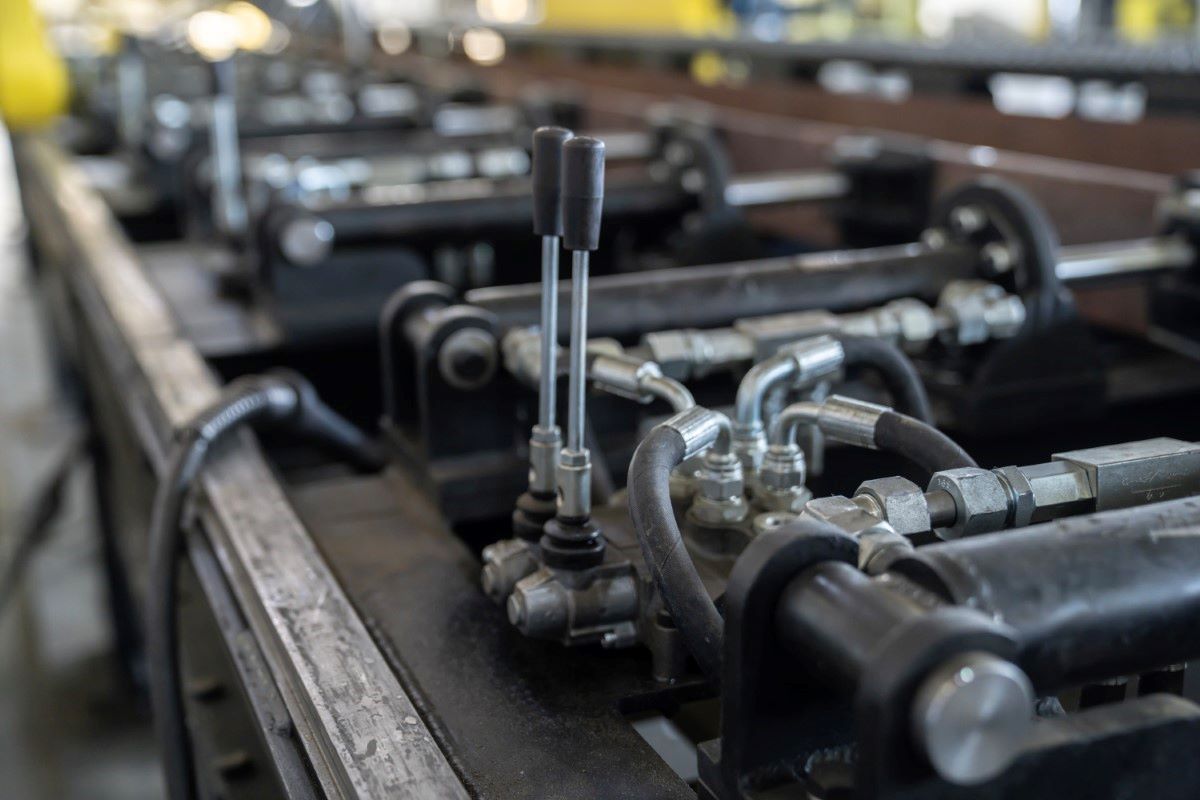

7. Possibility of simultaneous travel of the web of main table using command switches to create an exact motion for assembly.
8. Possibility of simultaneous travel of the flange of main table using a control key to create an exact motion for assembly.

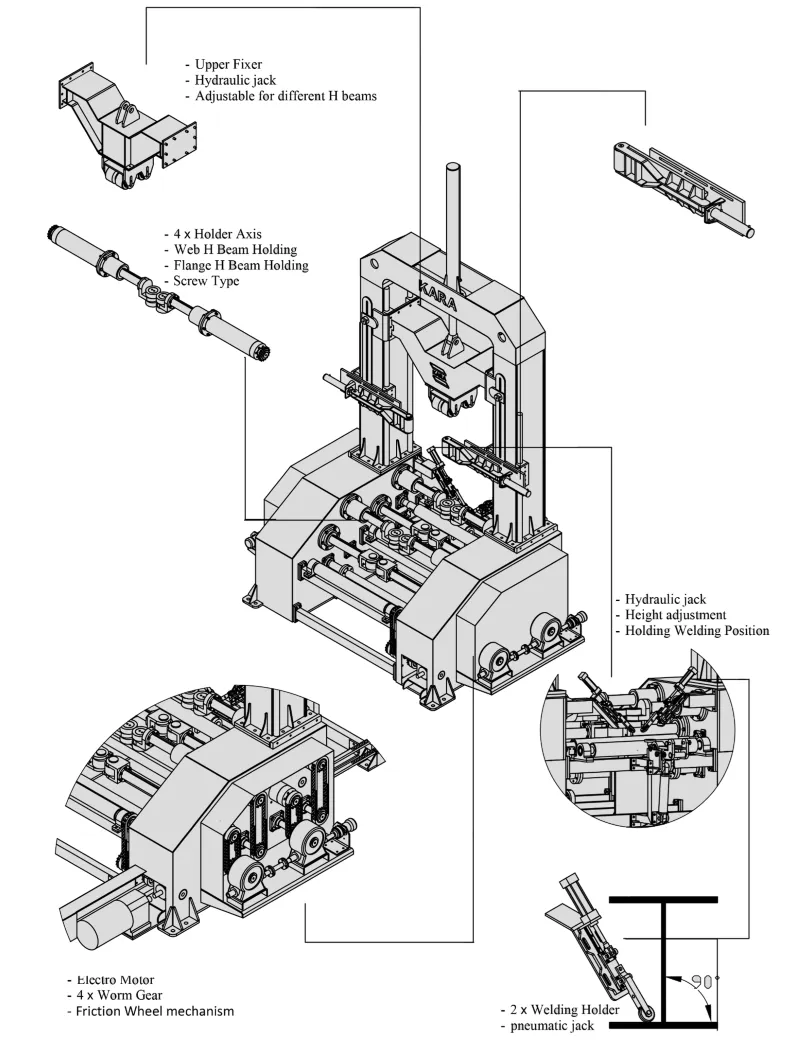

9. Using a hydro-motor and helical gearbox to exert force on web and flange of H-beam in the main chassis.
10. Equipped with a lower jack on the main gate for assembly of flange beams with high level of distortion.
11. Equipped with hydro-mechanical step and an adjustable clamp for faster and more precise assembly of H beam web and flange.
12. Having a multi-stage hydraulic set attached to the main chassis.
13. Equipped with an automatic oil filling system on mechanical joints.
14. Having a robust main assembly gate with 4 axes of motion to direct the pressure set precisely.
15. Equipped with 2 web set on the main gate for heavy duty H beams with high dimensions.

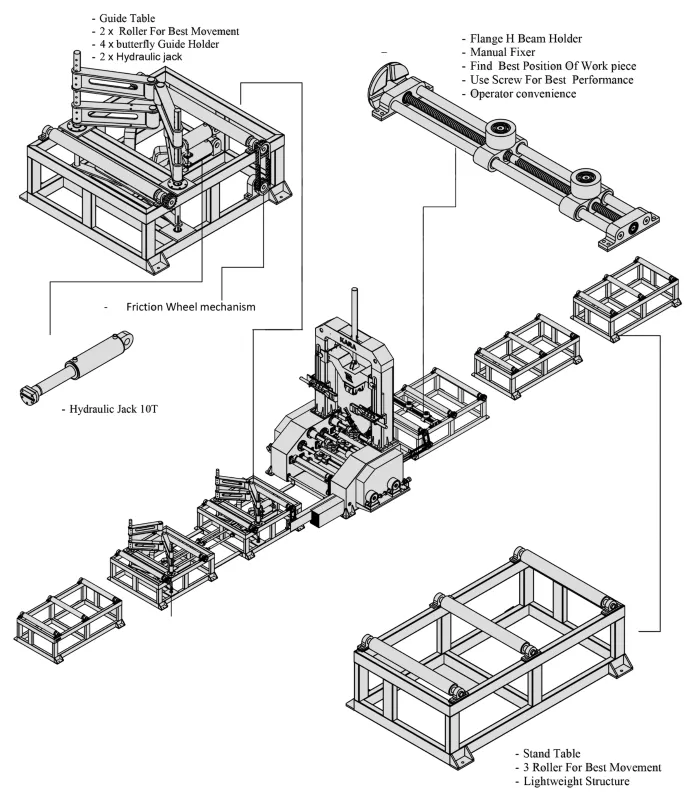

16. Equipped with 4 hydraulic joint flange rollers on movable input tables.
17. Equipped with 2 H beam rollers on movable output tables.
18. Equipped with pneumatic welding torch holder with an adjustable spring system (manual)
19.  A Thru flange Control panel
20.  Equipped with a radiator cooling hydraulic power unit.



---
