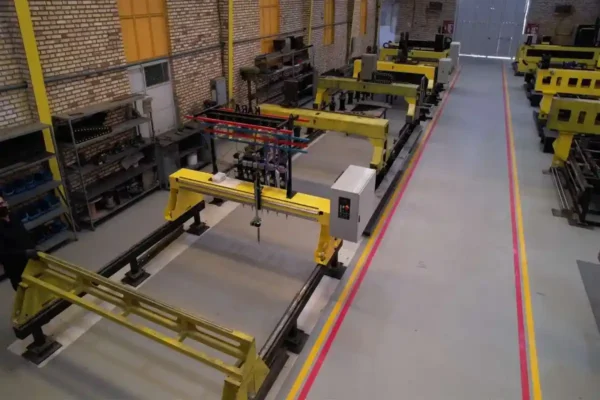

KARA Strip Cutting Machine

Features:

  • Linear movement powered by step motor , rack & pinion.
  • Tow step motor, planetary gearbox, rack & pinion in gantry configuration for smooth and vibrationless movement.
  • Nozzle up/down – left/right movement in linear bearing path.
  • Control system: PLC + membrane polycarbonate pane

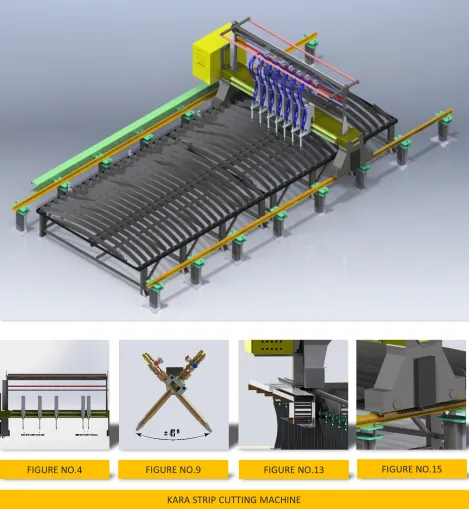

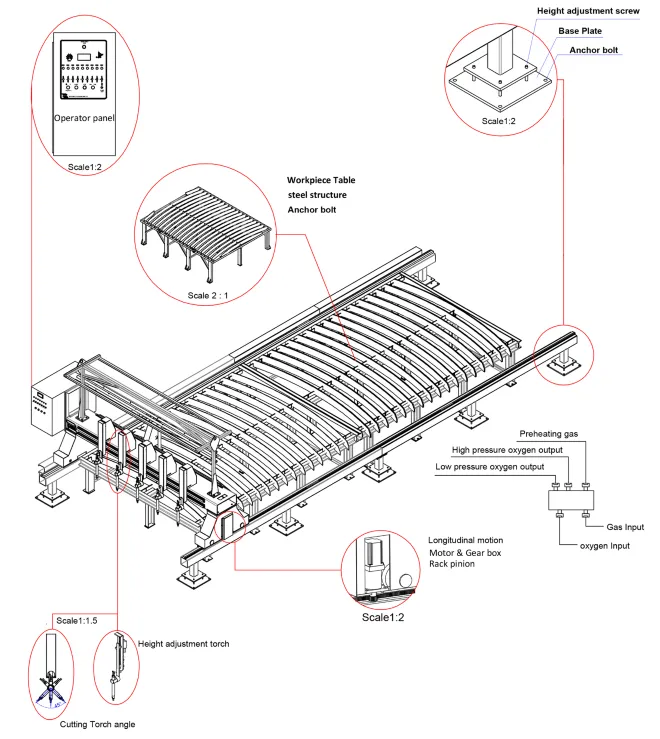

KARA Strip Cutting Machine

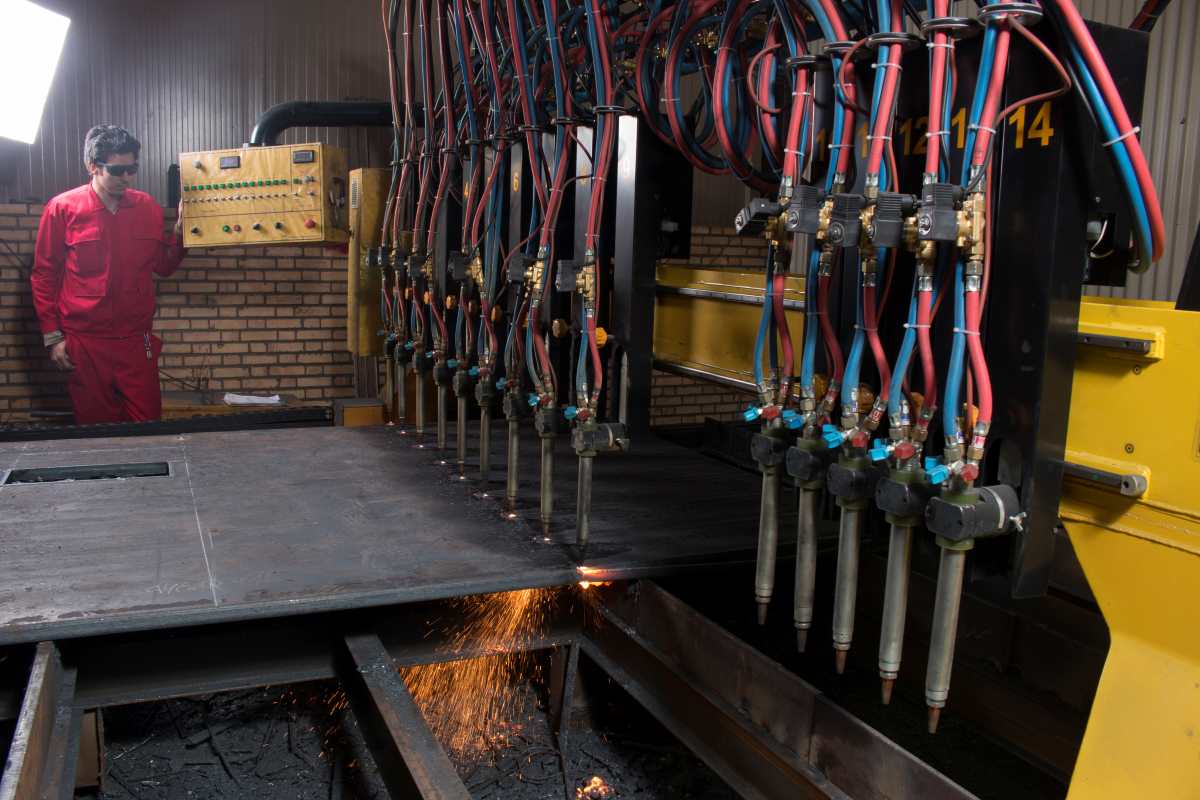

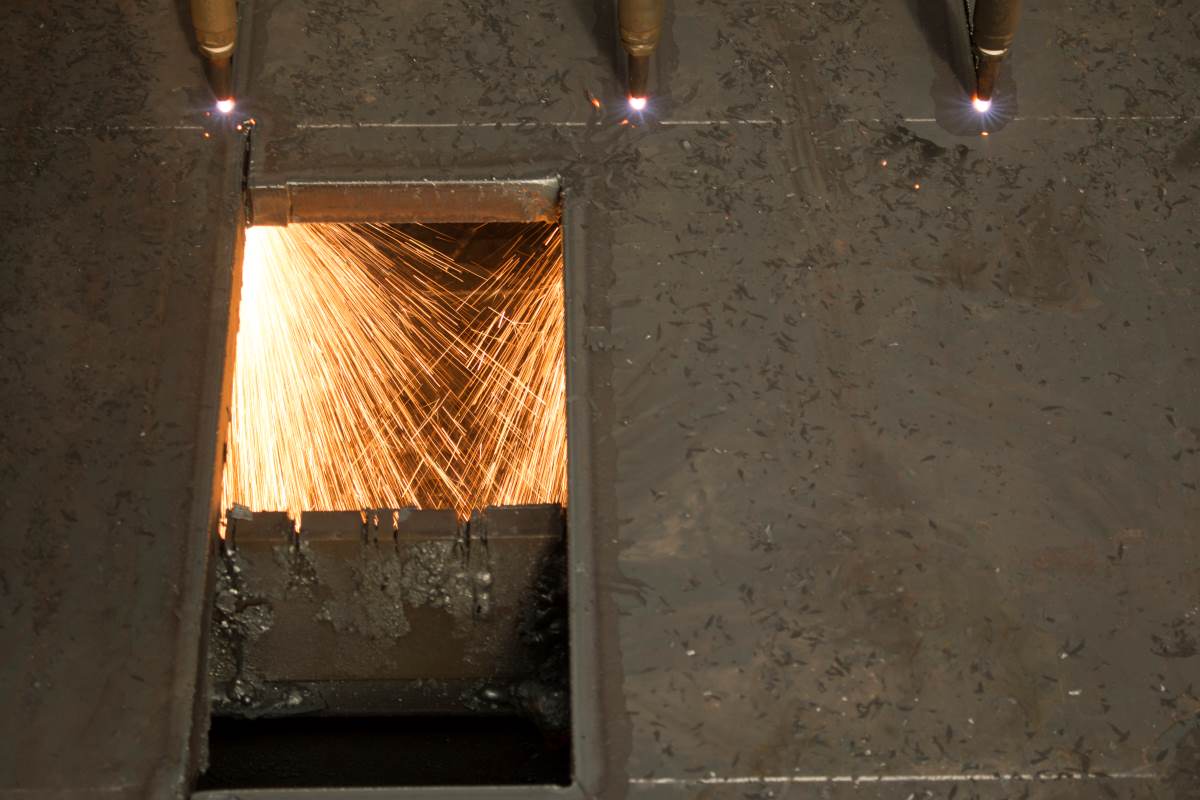

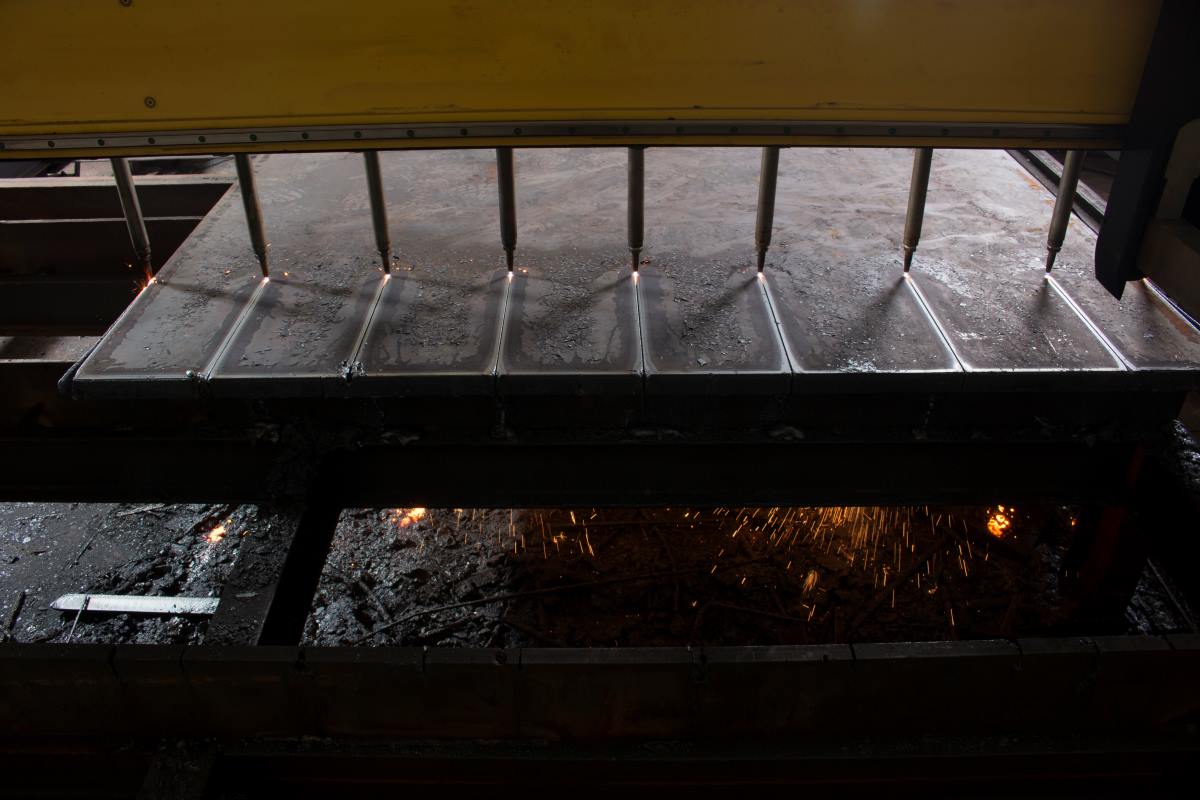

  1. Suitable for making strip cutting from steel plate oxy-fuel method.
  2. Transverse cutting ability.
  3. Robust structure – formed by welding & machining processes.
  4. Linear movement powered by step motor , rack & pinion.
  5. Tow step motor, planetary gearbox, rack & pinion in gantry configuration for smooth and vibrationless movement.
  6. Nozzle up/down – left/right movement in linear bearing path.
  7. Control system: PLC + membrane polycarbonate pane
  8. User friendly

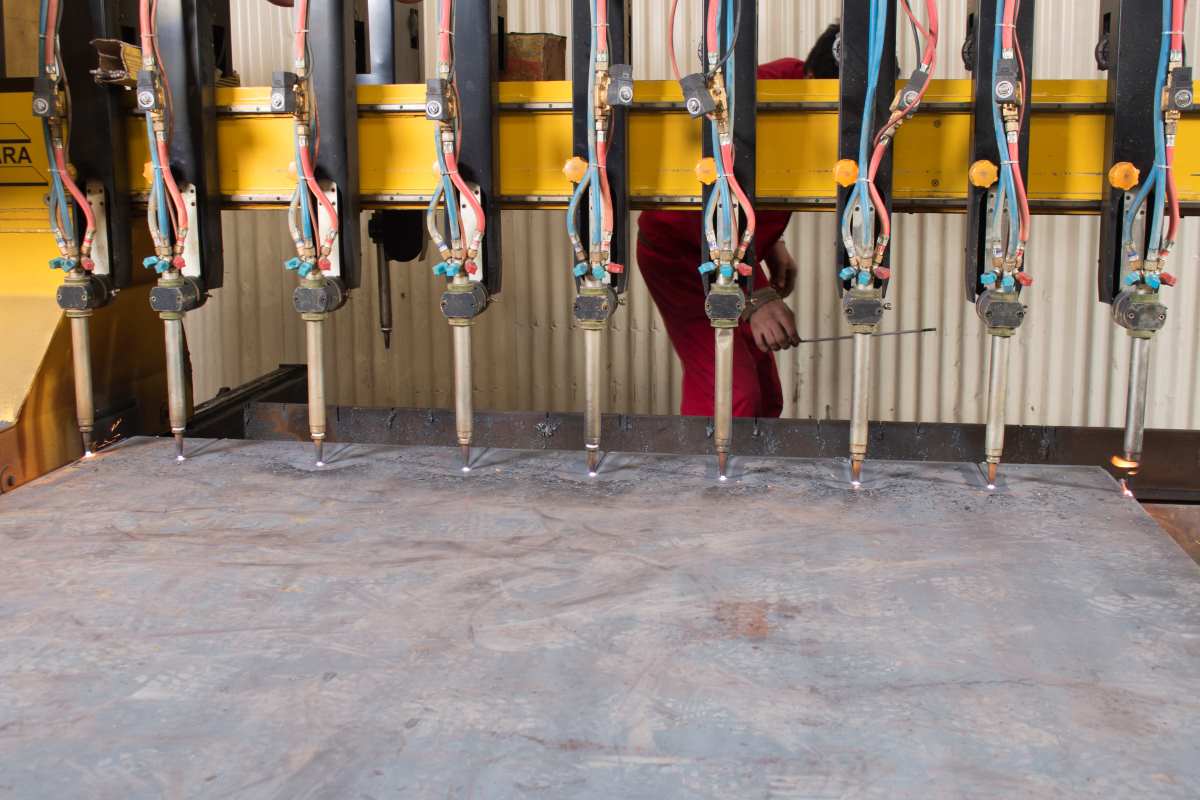

  9. Each torch controlled by electric valve separately for saving oxygen & fuel gas, accurate timing & easy operation.
  10. Rail cleaning brush.
  11. Spring pinion pusher for decrease backlash & safety.
  12. Robust and level adjustable rail system.
  13. Steel and bend type bed (easy replacement).
  14. Automatic torch heigh adjustment system for each torch (optional).


Main Technical Specifications
