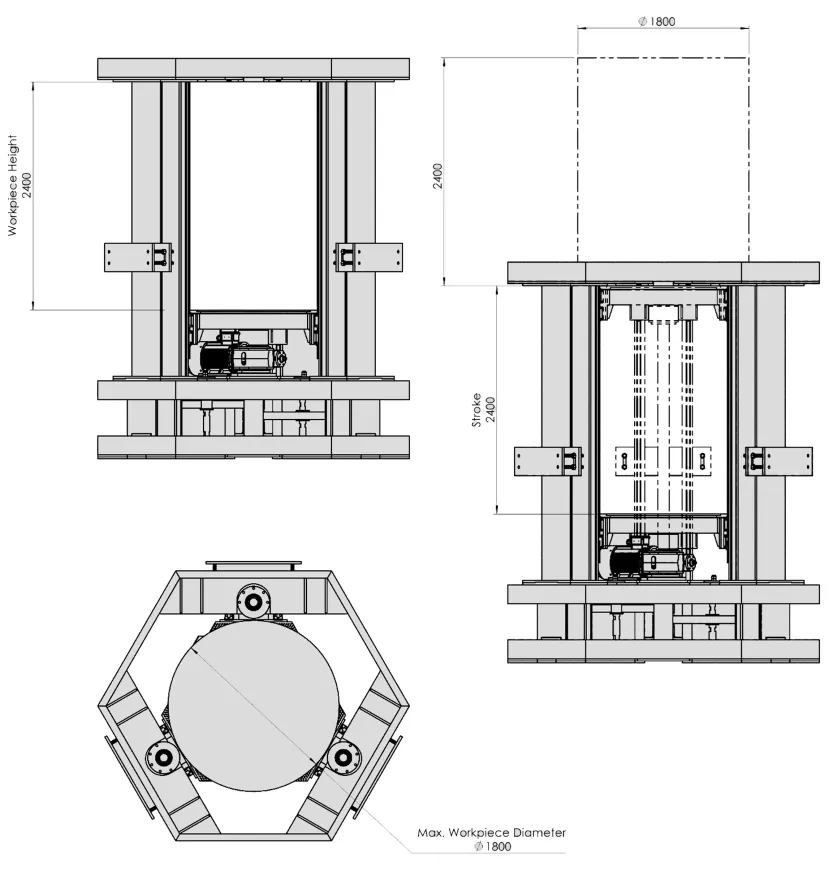

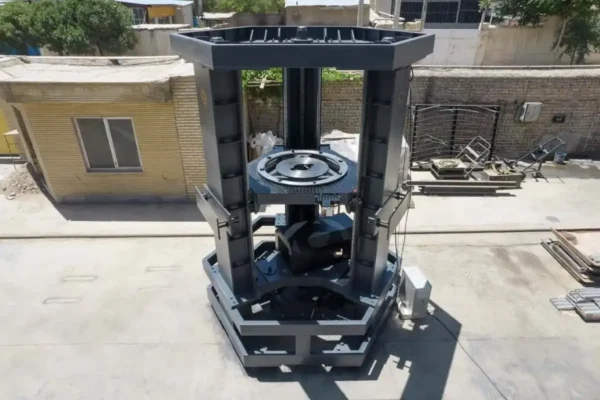

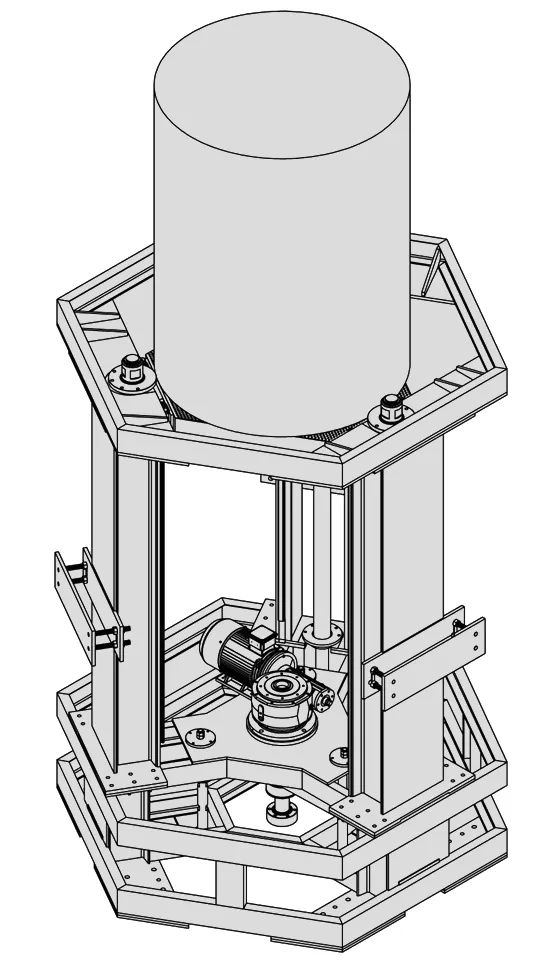

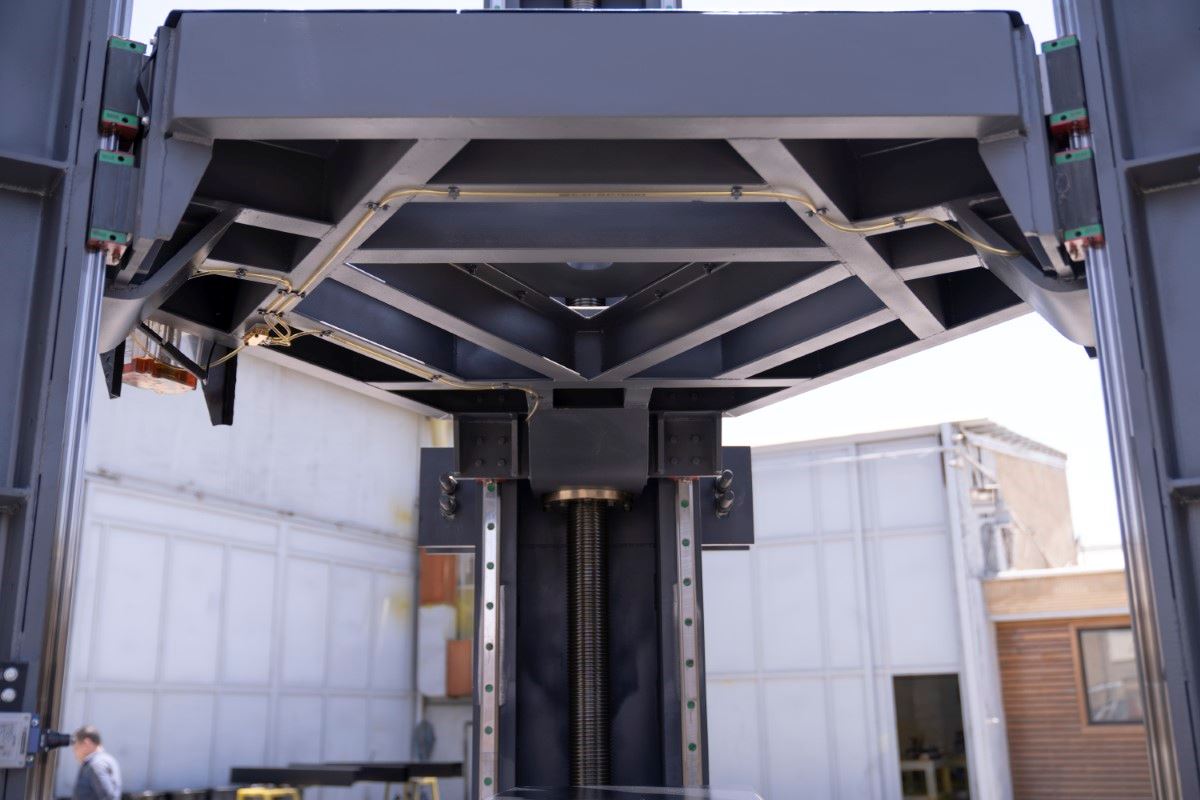

KARA Vertical Assembly Elevator Machine

Features:

  • High Precision: Moves components with high accuracy.
  • Automation: Integrates with other equipment to reduce manual labor.
  • Space Optimization: Utilizes vertical space efficiently.
  • Flexible Configuration: Adaptable to various component sizes and production lines.

Vertical Assembly Elevator Machine

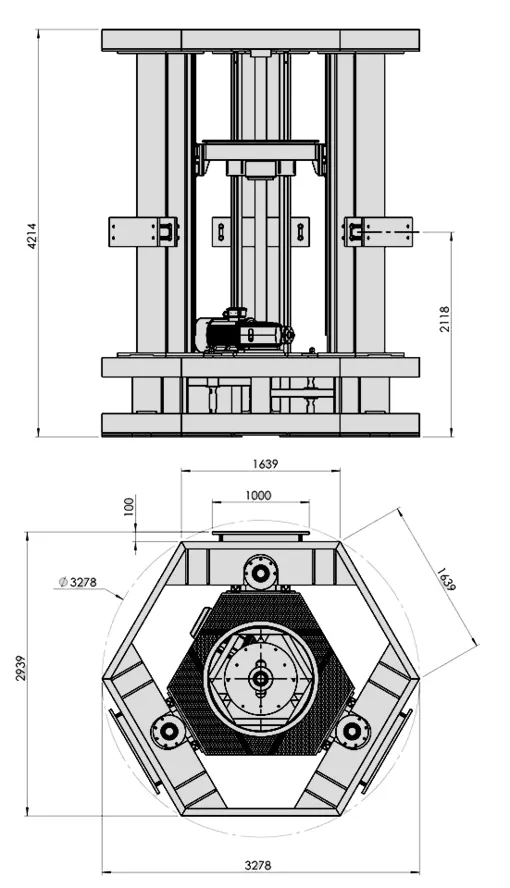

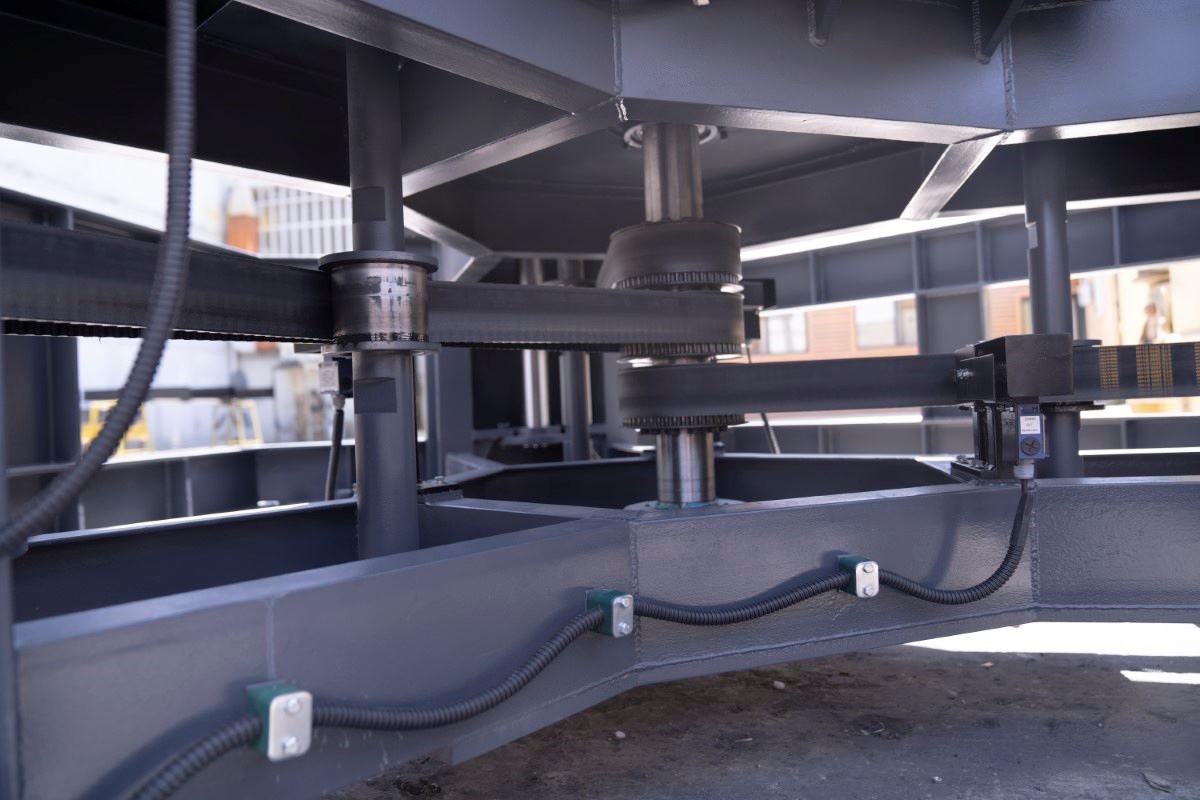

Introduction This machine is designed for the vertical movement of cylindrical workpieces weighing up to 12 tons. Its driving system is an electromotor gearbox connected to three vertical leadscrews, and it moves the working platform of the machine. The central platform is connected to the leadscrews by the screw nuts, and the rotation of the leadscrews causes the linear movement of the platform. This power transmission system and the electromotor gearbox, is installed at the end of the machine chassis. The central shaft of electromotor gearbox connects to each of the leadscrews by pulleys and timing belts. using of the timing belt increases the accuracy of the movement and synchronizes the rotation of all three axes, as well as alignment of the linear movement of platform. Therefore, the linear movement and up and down of the workpiece in its movement course is done without any slip along the horizon, which is the main advantage for this machine.Applications
  • vertical movement of cylindrical workpieces weighing up to 12 tons
  • workpiece linear movement without any slip along the horizon

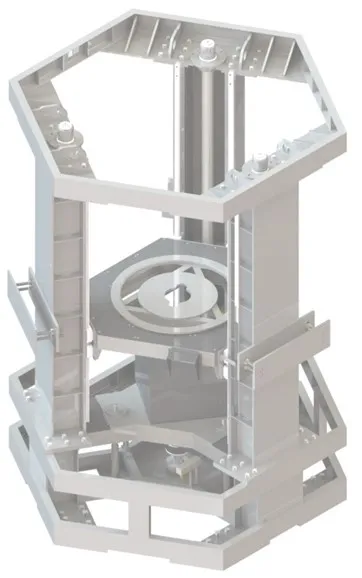

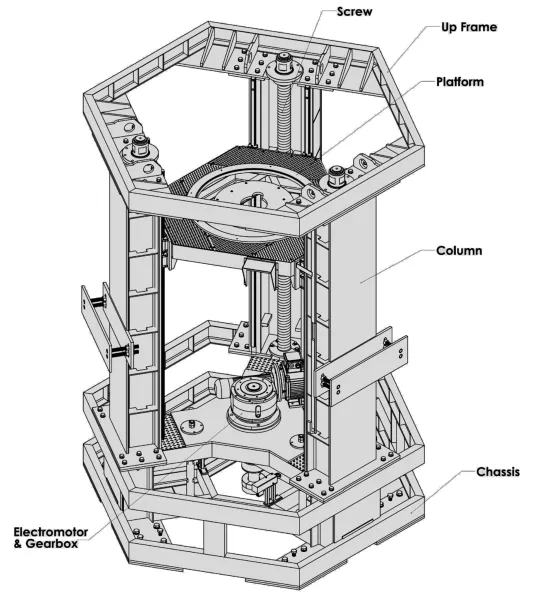

  • Equipment
  • Chassis
  • Three Columns
  • Up Frame

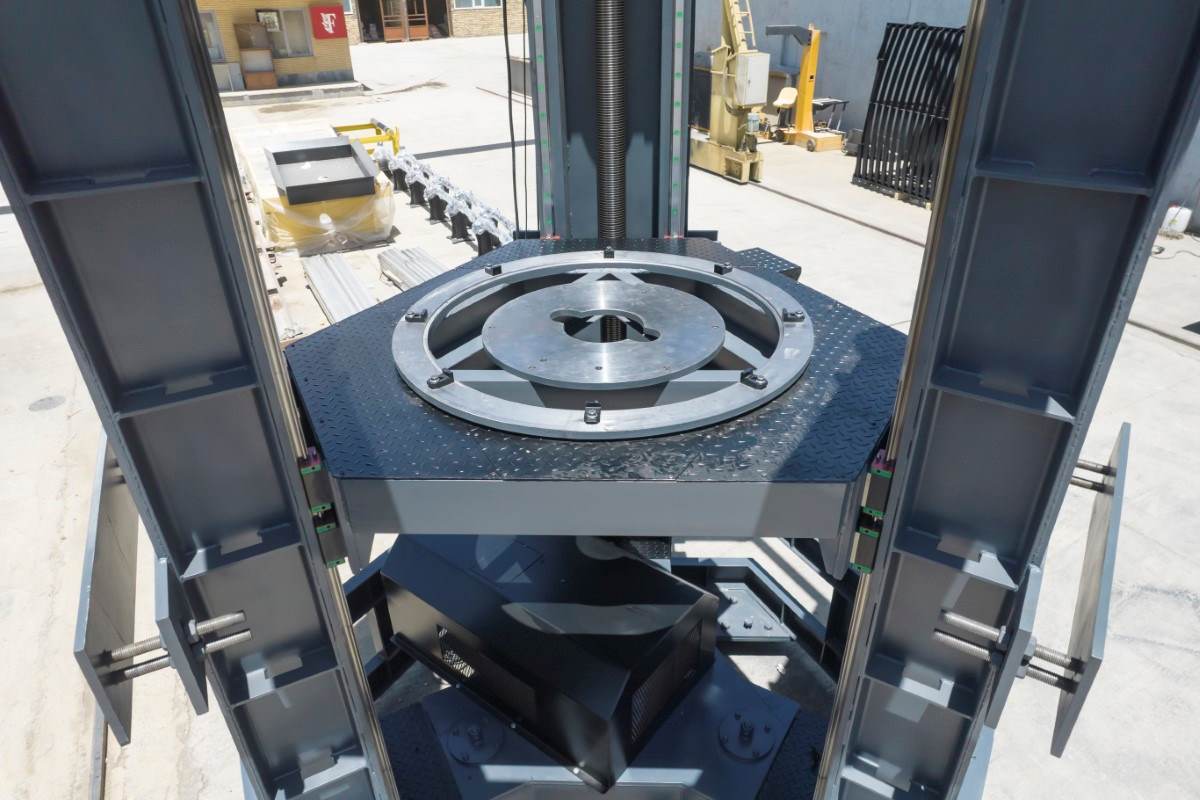

  • Platform
  • Three Leadscrews
  • Three Screw Nuts
  • Electromotor & Gearbox
  • Driving System
  • Automatic Lubrication System
