KARA Welding Column & Boom Machine

Features:

  • The slow vertical movement and linear control of horizontal boom movement in two directions leads to a high speed and quality of welding on heavy metal work-pieces. The 360° turning of the column allows for a radial performance of machine. Also, there is a possibility for installation of a movable cutting and welding torch on the boom.

KARA Welding Column & Boom

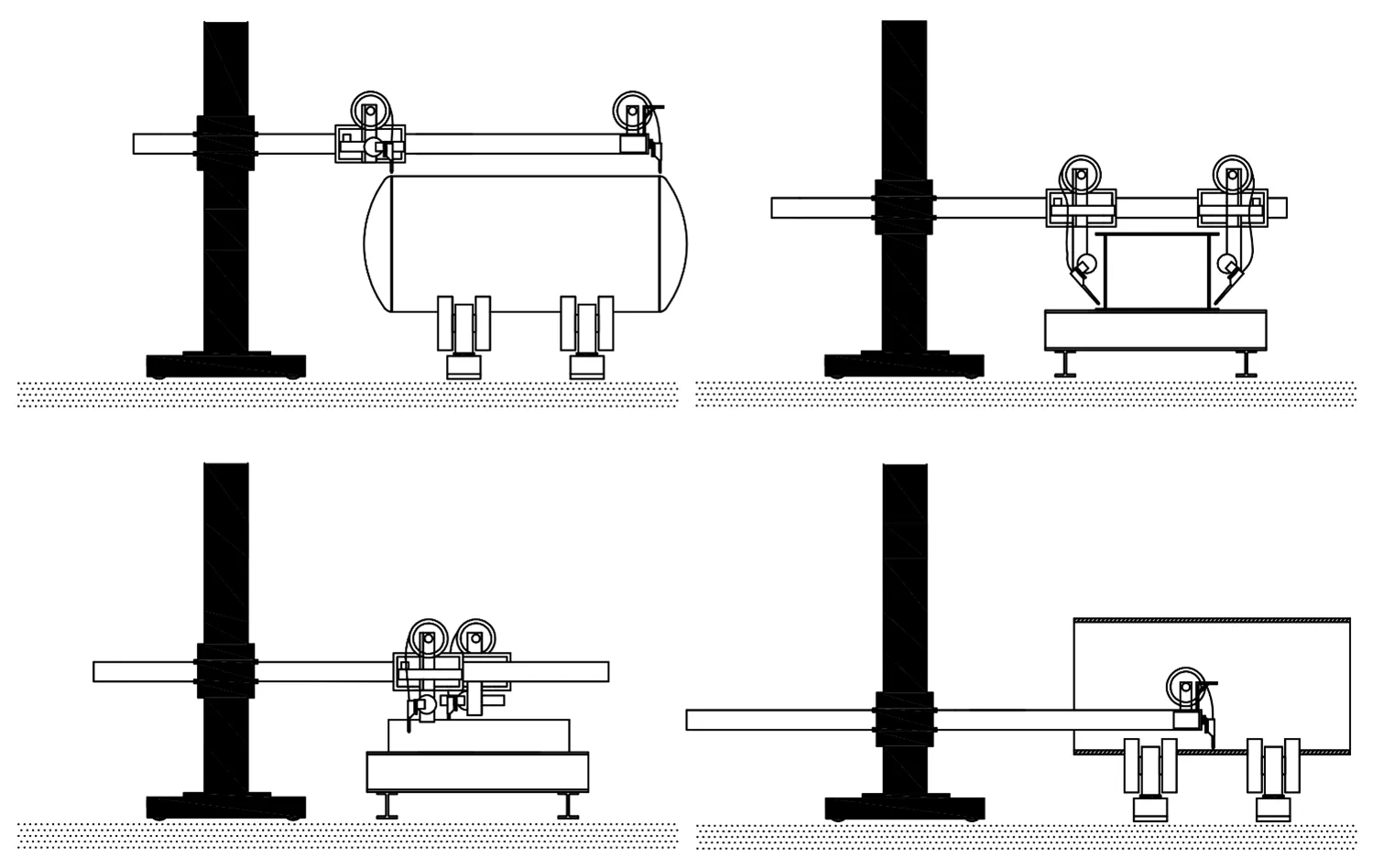

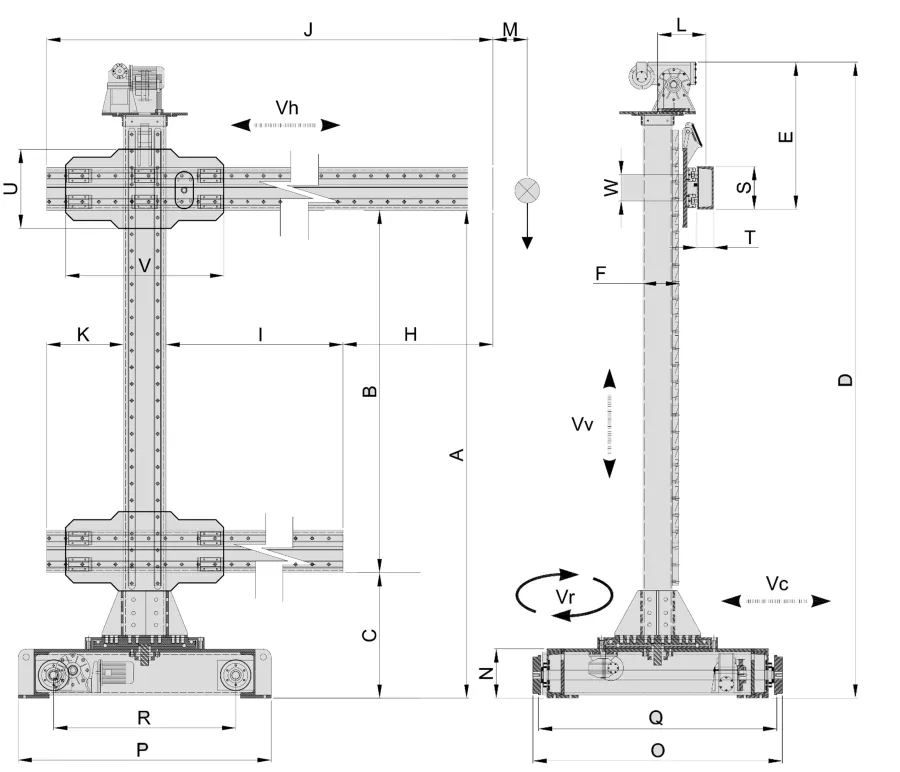

Welding column and boom has been designed and manufactured for welding several metal structures, vessels and circular surfaces at high dimensions ranging from 2×2 up to 10×10. The driving force of this machine is supplied by a motor gear box caused by a mechanical movement. The travel speed equals the speed of a welding tractor from 10 to 120 cm/min. The slow vertical movement and linear control of horizontal boom movement in two directions leads to a high speed and quality of welding on heavy metal work-pieces. The 360° turning of the column allows for a radial performance of machine. Also, there is a possibility for installation of a movable cutting and welding torch on the boom. The efficiency of this machine can be increased by using KARA rotary tables.     Working dimensions of the device


KCB – Type A


KCB – Type B



Technical Data (Overall)

Technical Data (Stationary/Motorized Base)

Technical Data (Cross Box/Boom)

Power Sources Technical Data

Welding Head Technical Data

PEG1 Welding Control Box Technical Data

Suction Technical Data
