KARA Welding Rectifiers LHA 400, 630, 800

Features:

  • Possibility of Performing TIG welding on very Thin Metal Pieces Using a Minimum Current 18 Amp
  • Having a Slow Arc and Easy control of Molten Pool
  • Having an Excellent and Reliable Performance for Welding Various Metals
  • Possibility of Welding Amperage Adjustment

KARA Welding Rectifiers LHA 400, 630, 800

Technical Specifications

∆ Application
  1. Possibility of Manual welding, TIG Welding (Argon) and Gouging Operation
  2. Possibility of Using in Pipe Welding
  3. Suitable for Various Industries such as Metal Structure, Oil and Gas, Construction and so on

∆ Features


  • Suitable for Continuous Welding for Three Work Shifts with High Power and %100 Duty Cycle
  • Possibility of Using Various Welding Electrodes Including Alkaline, Acid, Rutile and Cellulosic Electrodes at Various Sizes
  • Possibility of Performing Gouging Operation for Removal of Weld Defects Using Carbon Electrodes with 6-13mm Thickness
  • Possibility of Performing TIG welding on very Thin Metal Pieces Using a Minimum Current 18 Amp
  • Having a Slow Arc and Easy control of Molten Pool
  • Having an Excellent and Reliable Performance for Welding Various Metals
  • Possibility of Welding Amperage Adjustment
  • Having an Arc Force System for Establishing Arc Sustainability
  • Having a Two-Phase Warning Signal
  • Equipped with a CT for Synchronization and Compensation in Network Fluctuations
  • Equipped with a Compensator Circuit for Manual Operator and Input Voltage
  • Equipped with a Gearbox Protecting the Potentiometer against Mechanical Pressure
  • Having an Anti-Sticking System against Electrode Sticking to the Work-Piece
  • Possibility of Connecting to a Generator with Minimum Amperage at the Time of Start of the Welding
  • Easy Separation of wheels for Installation of Machines on Chassis
  • Having a Two Layer Electrostatic Powder Coating and a Tarpaulin Cover
  • Having a Double and Robust Galvanized Coating against Rust
  • Having a high Open Circuit Voltage and an Optocoupler Mechanism for Creating Fast and Efficient Feedbacks to Control Molten Pool

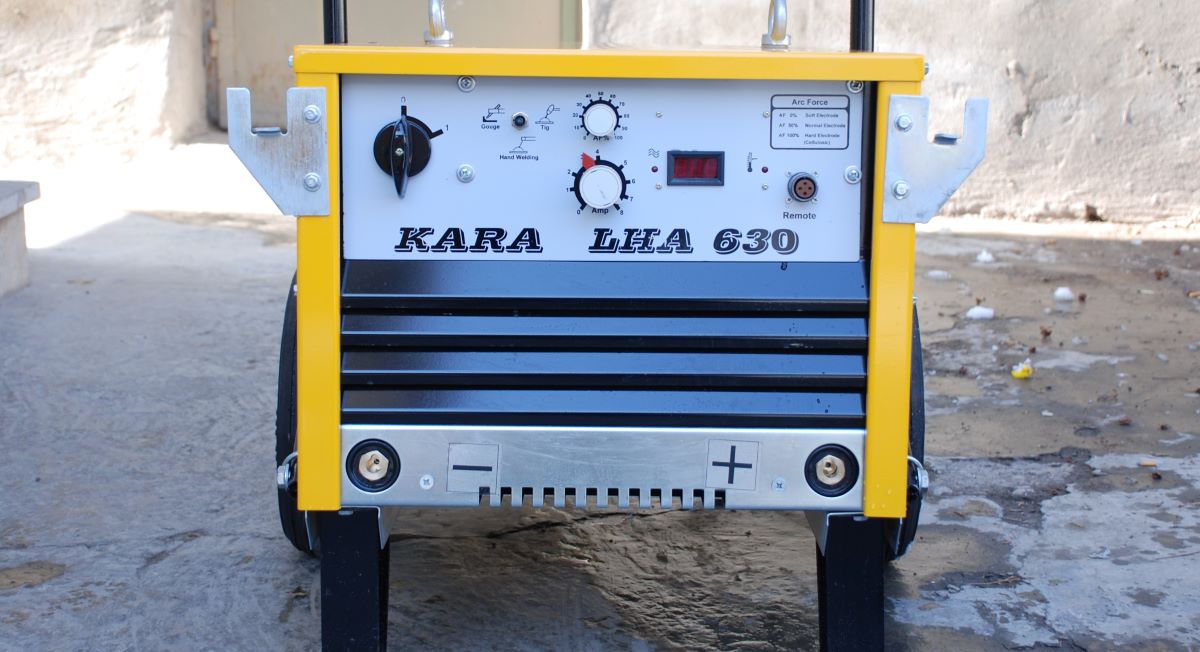

Welding Rectifier LHA 630 & 400

The Stationery Four Wheel Rectifier LHA 630 & 400

∆ Technical Specifications

√ Possibility of Welding With Various Electrodes and Equipped with a Digital Display √ Manufactured with a Suitable Capacity for Three Work Shifts √ Equipped with an Anti-Sticking System against Electrode Sticking to the Work-Piece √ Equipped with a Compensator Circuit for Manual Operator √ Having a Two Phase Warning Signal √ Possibility of Using Manual welding, TIG Welding (Argon) and Gouging Operation √ Having Four Wheels for Easy Transport √ Equipped with a Gearbox Protecting the Potentiometer against Mechanical Pressure √ Accompanied by a Smart Remote Controller and Socket √ Equipped with an Optocupler Mechanism for Establishing Fast and Efficient Feedbacks to Control Molten Pool √ Equipped with Arc Force Volume for Establishing Arc Sustainability √ Equipped with a CT for Synchronization and Compensation in Network Fluctuations √ Having a Two Layer Electrostatic Powder Coating and a Tarpaulin Cover √ Suitable for Pipe Lines Welding √ Possibility of Connecting to a Generator with Minimum Amperage at the Time of Start of the Welding √ Easy Separation of wheels for Installation of Machines on Chassis √ Suitable for TIG Welding with a Minimum 18 Amp for Welding on Metal Work-Pieces

Manual Metal Arc Welding

In Manual Welding, the open circuit and excellent current balancing results in circuit reliability. The anti-sticking circuit of this machine automatically decreases the possibility of sticking welding current electrode to 18 Amp and consequently the electrode can be separated from the work-piece easily. TIG Welding The Rectifiers (400/630/800 LHA) have been designed for manual and TIG welding. The rectifiers 400/630/800 LHA allow for TIG welding on very thin metal work-pieces with a minimum 18 Amp.

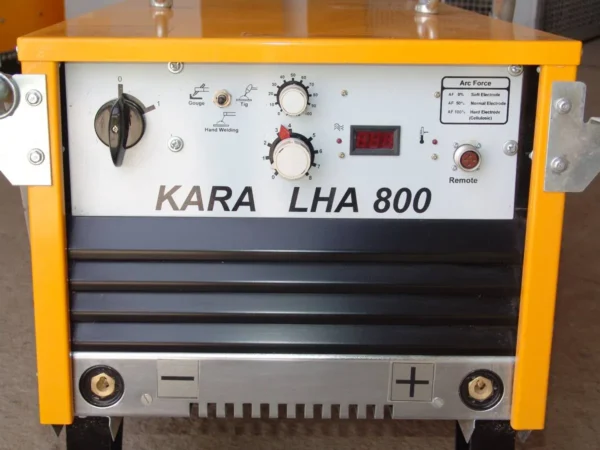

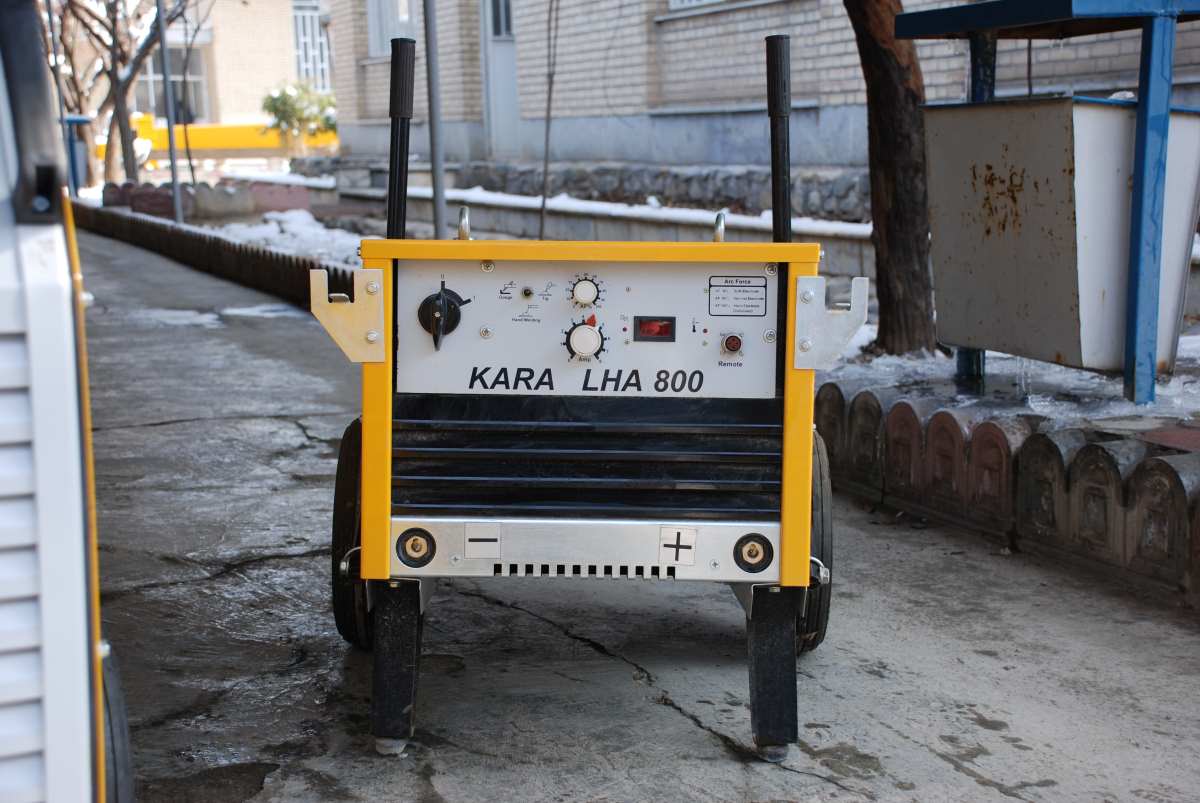

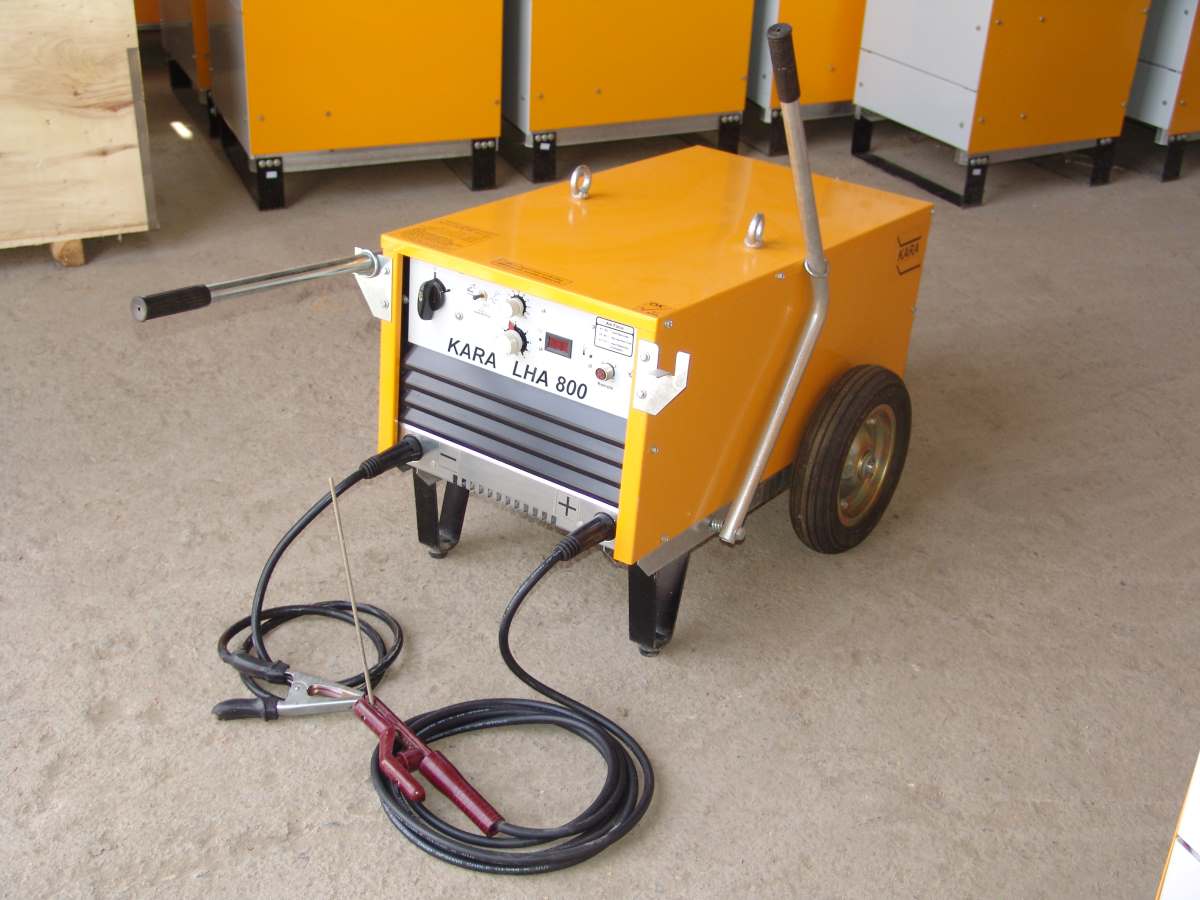

Manual Metal Arc Welding Rectifier LH800

° Excellent and Reliable Performance of Manual welding rectifiers (400/630/800 LHA) Meets All of Your Welding Needs ° Chassis Robust Galvanized Coating against Rusting ° Other Parts Covered by a Static Powder Coating ° Dynamic Features, Voltage & Amperage Changes, Anti-Sticking System Performance and High Power has made the Manual Welding Rectifiers (LHA) a Reliable tool for Construction Contractors and Manufacturers of Metal Structures ° Welding Amperage can be Adjusted Easily Using Manual Welding Rectifiers (LHA) ° Welding Rectifiers (LHA) Features Result in Arc Stability and Easy Control of Molten Pool ° Power Output Remains Constant in spite of Long Cable ° Open Circuit High Voltage brings about considerable capabilities for the machine. The Anti-Sticking Circuit Reduces the Possibility of Sticking Electrode to the Work-Piece.

Gouging Operation (LHA 800)

The combination of manual welding and gouging is very ideal and practical. The gouging operation is a very efficient method for cleaning and removing welding faults. The welding rectifier LHA 800 allows for gouging operation using carbon electrodes with 6-13mm thickness.

MAIN TECH



Welding & Cutting Ind. Mfg. Co
