Storage Tank Welding Machine

Features:

  • it is available as a single -side version and a double – side version.
  • The operator of each machine (if a double-side version) rides in a cabin, where he supervises and controls the welding process with the control panel within easy reach.
  • The cabin, whose floor level under the carriage is variable to suit the height of the plate, is built as a cage to give the operator(s) maximum safety and comfort.
  • For Weather protection the cage can be covered by curtains.

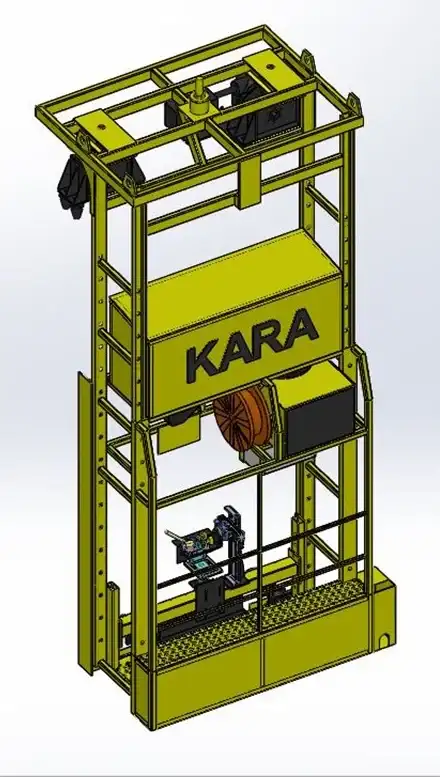

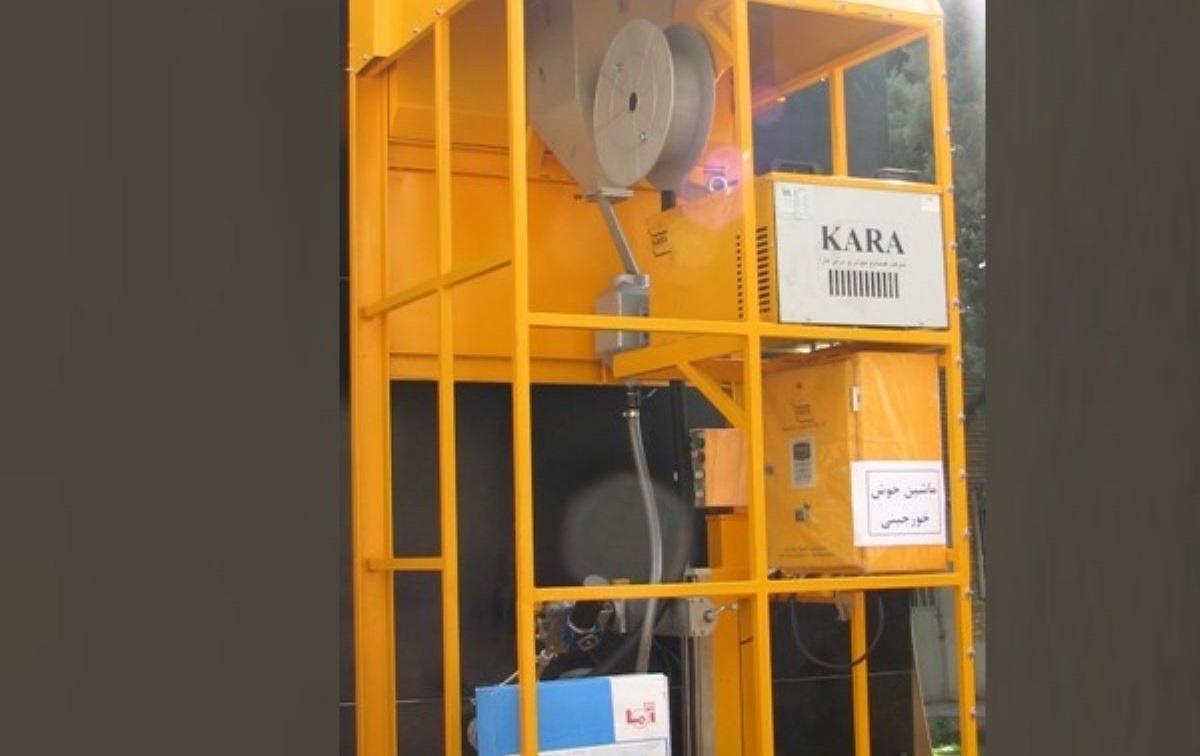

KARA Storage Tank Welding Machine


  1. Suitable for welding in various shapes and sizes with Submerged Arc Welding techniques.

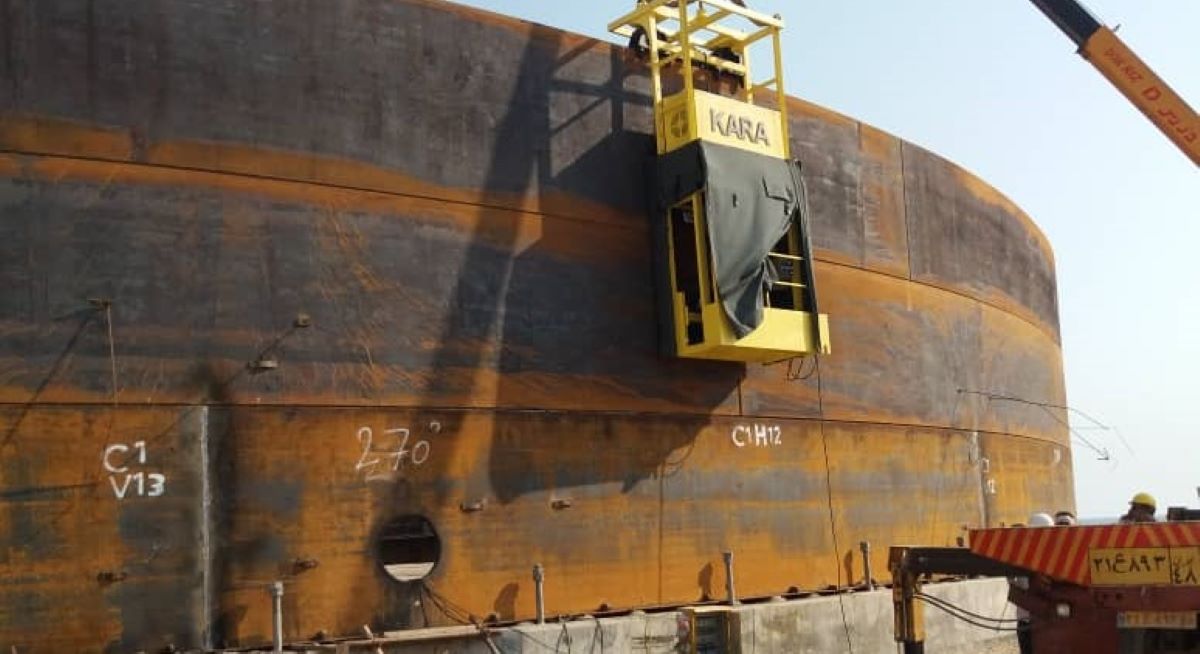

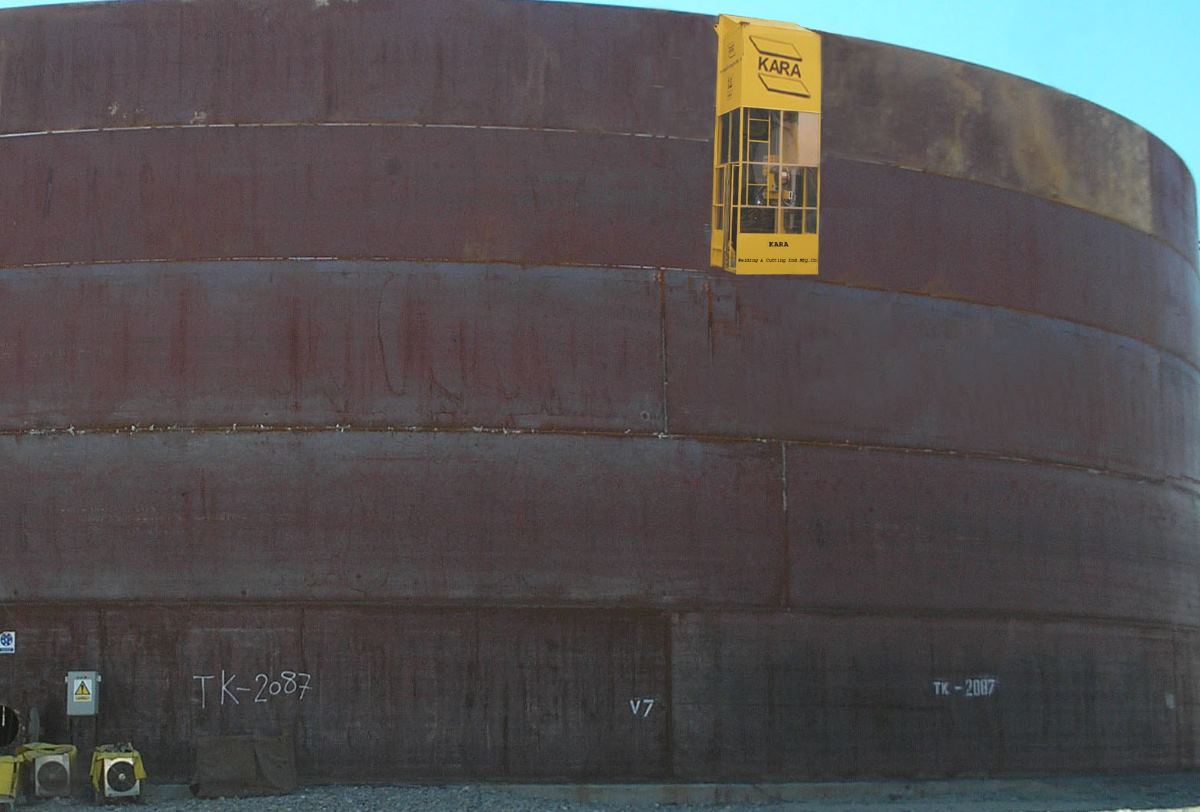

  2. Circotech is a series of self-propelled 3 o’clock welding equipment primarily developed for on-site erection of large storage tanks, silos, blast furnaces and similar cylindrical objects.
  3. Usually it is designed ways of building tanks, one machine in the series is designed to travel on a rail which is temporarily fixed to the shell or on a stand – alone ring outside the shell.
  4. it is available as a single -side version and a double - side version.
  5. The operator of each machine (if a double-side version) rides in a cabin, where he supervises and controls the welding process with the control panel within easy reach.
  6. The cabin, whose floor level under the carriage is variable to suit the height of the plate, is built as a cage to give the operator(s) maximum safety and comfort.
  7. For Weather protection the cage can be covered by curtains.
  8. the cabin of a double -side machine is equipped with step ladders and a joining bridge at the top to facilitate for the operators to climb onboard.

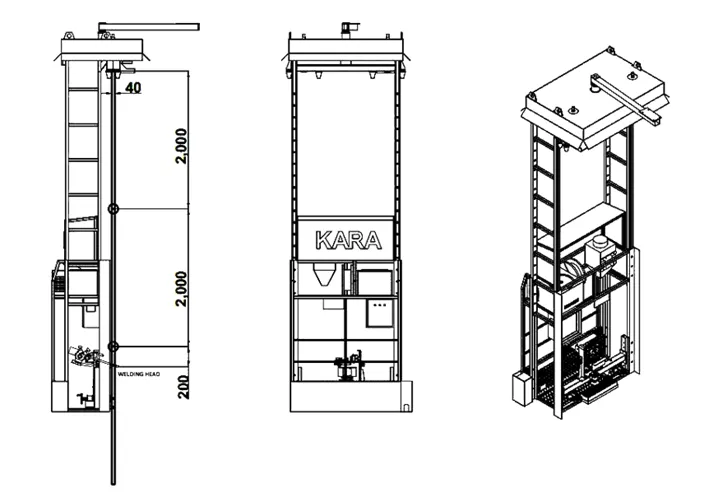

  9. It is easy to adjust the machine for different plate heights, because of the telescopic design of the frame.
  10. the design also makes it easy to transport.
  11. Expandable and removable operator is designed to fit in narrow spaces then extend to give the operator more room.
  12. External ladders.
  13. Frame height adjustment is bolted connections between the upper and lower frames.


KARA TCR 1250A


KARA Suction Unit




Main Technical Specifications

KARA TCR 1250A Technical Specifications

KARA Suction Unit
