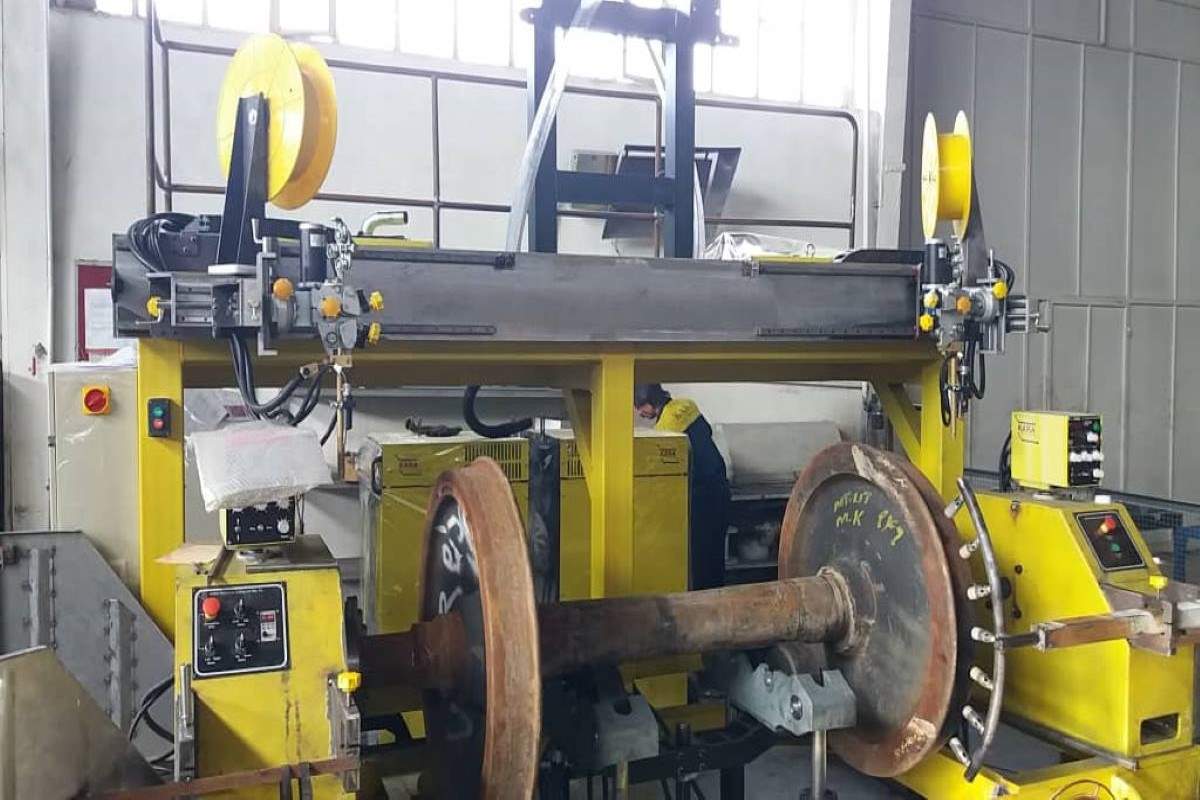

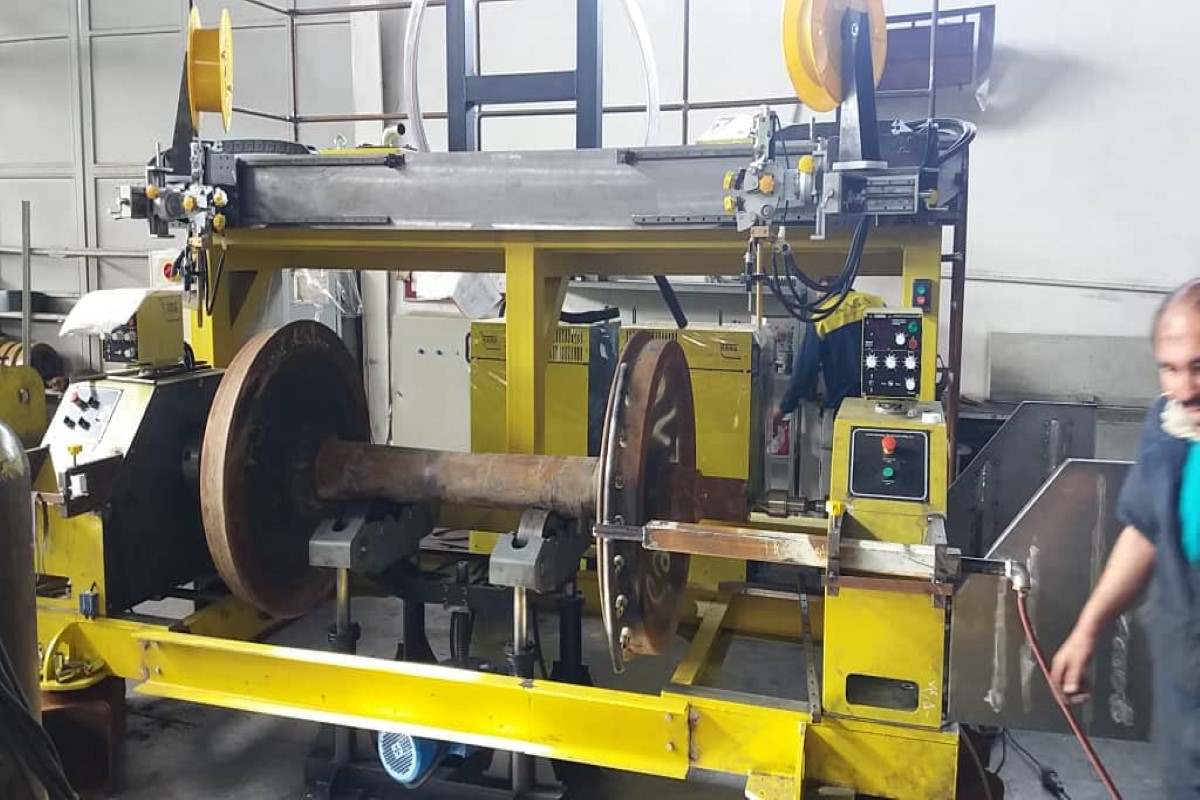

KARA Railway Wheels Cladding Machine

Features:

  • Has a fixture to hold the wheel on both sides of the axle
  • Ability to weld and cover circular parts in addition to train wheels – types of rollers
  • It has 2 sets of wheel loaders
  • Ability to load up to 3 tons on the machine’s turntable

KARA Railway Cladding Machine



  1. Train wheel cladding machine Train wheel welding machines have the following features
  2. It has a sub-powder welding system with accurate ampere and voltage control during welding according to the required standard
  3. It has a wheel rotation speed control system by an inverter
  4. Has a fixture to hold the wheel on both sides of the axle
  5. Ability to weld and cover circular parts in addition to train wheels - types of rollers
  6. It has 2 sets of wheel loaders
  7. Ability to load up to 3 tons on the machine's turntable
  8. Work and easy operation
  9. Speed and quality in train wheel welding and repair operations • The ability to adjust the height in three X.Y.Z axes to a course of 100 mm
  10. Ability to weld all kinds of wheels used in rail industries with different sizes
  11. It has a welding connection system without contact and damage to the shaft and the surfaces under the bearing
  12. Has a powder storage tank with a capacity of 150 kg performance In order to speed up the repair and restoration of damaged wheels of trains and other railway industries, Kara company designed and produced a semi-automatic device that can weld and repair damaged wheels as soon as possible.
  13. Equipped with wheel heating system


Subset machine:


KARA TCR 1250A


KARA Suction Unit




Main Technical Specifications

KARA TCR 1250A Technical Specifications

KARA Suction Unit
